BM12A
BM12A

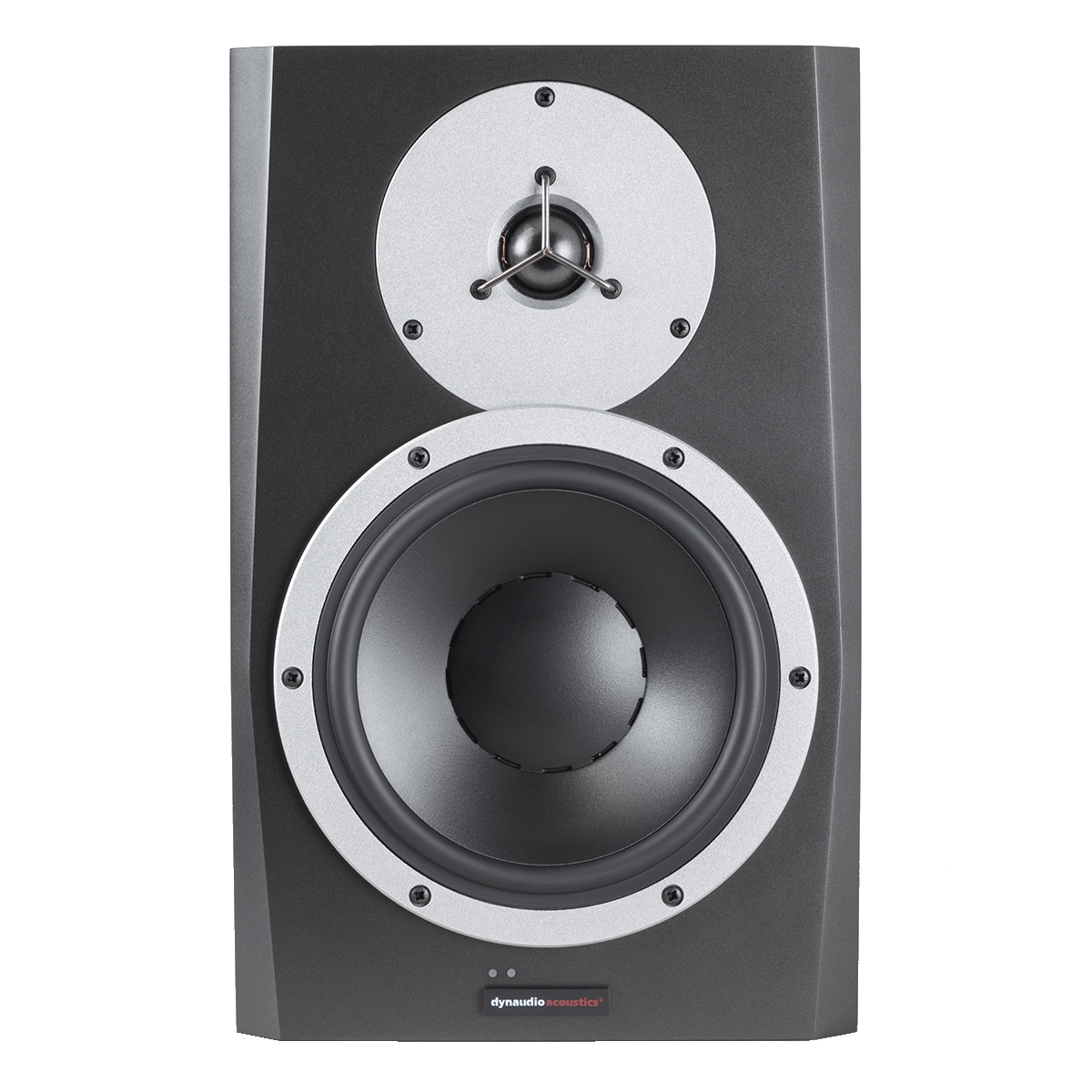

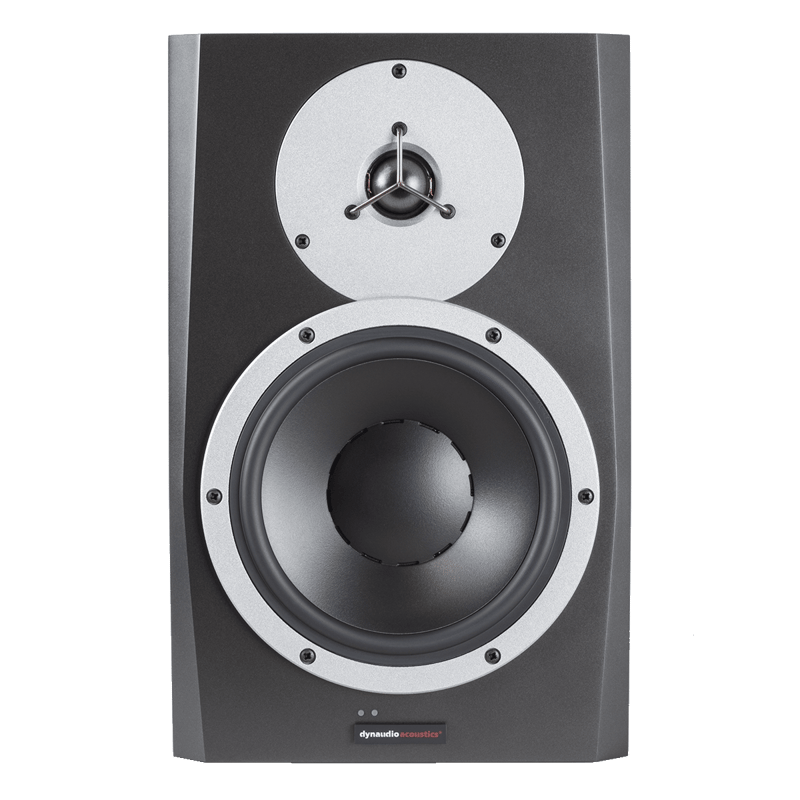

Two-way full analog active nearfield monitor - 8" neodymium magnet woofer and 1.1" soft dome neodymium tweeter This medium-sized nearfield monitor delivers the worldrenowned Dynaudio clarity and transparency, building on the latest Dynaudio Professional neodymium driver technology.
Introduction
Two-way full analog active nearfield monitor - 8" neodymium magnet woofer and 1.1" soft dome neodymium tweeter This medium-sized nearfield monitor delivers the worldrenowned Dynaudio clarity and transparency, building on the latest Dynaudio Professional neodymium driver technology.
The onboard placement and subwoofer adaptation filters allows BM12A to blend seamlessly into a large range of applications such as OB vans, project studios, post production facilities etc.
BM12A
Specifications
- Status Discontinued
- Segment Pro
- Series BM Series
- Type Nearfield Monitor
- Analog inputs XLR
- Maximum SPL (1m, pair) 123
- Amplifier Power Woofer (W) 100
- Amplifier Power Tweeter (W) 50
- AC Power Input 100-240V 50/60Hz
- Max Power Consumption (W) 130
- Box Principle Rear-loaded bass reflex
- Crossover 2-way DSP-based
- Crossover Frequency (Hz) 1500 Hz
- Crossover Topology 1st order
- Tweeter 1.1in soft dome
- Midrange/Woofer 8in MSP
- Weight kg 12.1
- Weight lbs 26 5/8
- Width mm 234
- Height mm 370
- Depth mm 327
- Width inches 9 2/8
- Height inches 14 5/8
- Depth inches 12 7/8
