Esotan 236 MKII

165mm 2-way component system

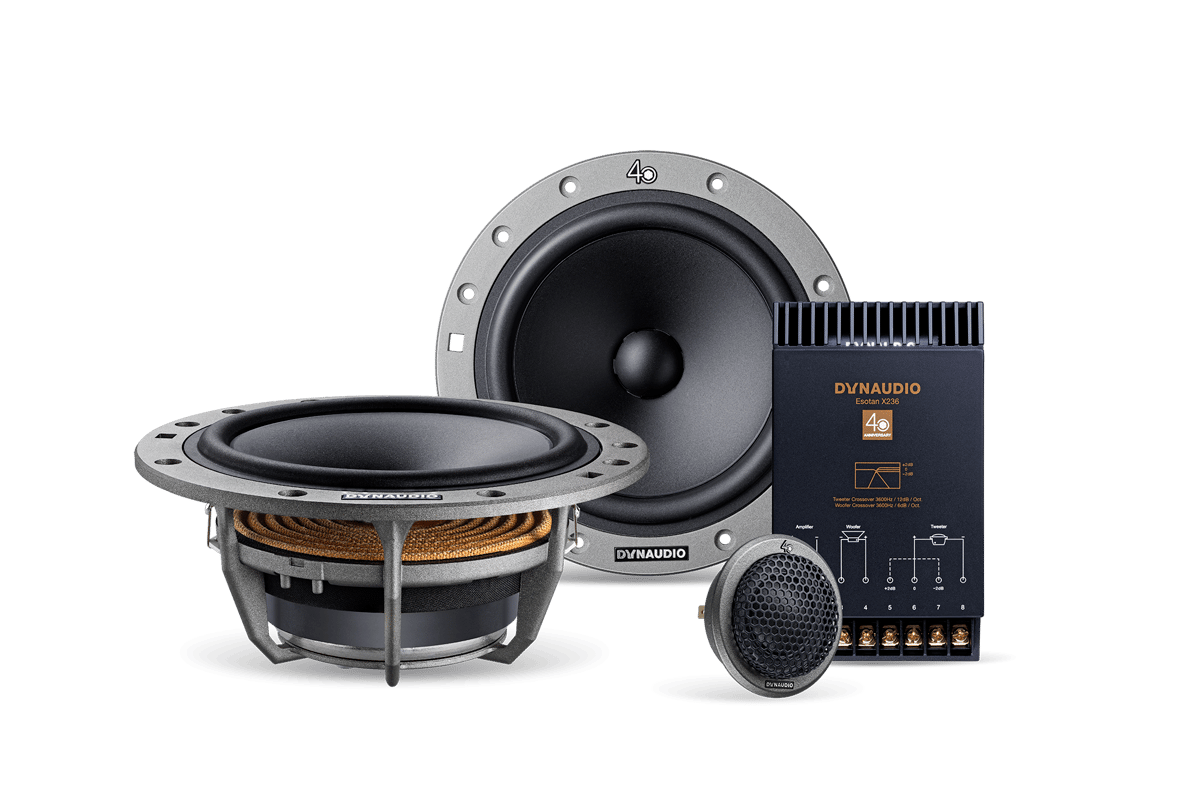

The Esotan 236 MKII is a 2-way component system comprising one pair each of MT136 tweeters, MF136 woofers and X236 crossovers along with all mounting hardware. It has a very high sensitivity(89dB@2V/1m), you can very easily to set up a high-quality customized installation with best performance, whether you use an amplifier or not.

Features

2022_Dynaudio_WebIcon_ConeGraphic_60x60px_Black

MT136 tweeter


The brand-new MT136 tweeter is equipped with the new coated textile dome, neodymium magnet system, 28mm aluminium voice-coil for providing a flatter frequency response and more detailed and natural reproduction.

2022_Dynaudio_WebIcon_ConeGraphic_60x60px_Black

MF136 woofer


Equipped with the new optimized MSP Magnesium Silicate Polymer (MSP) cone, 30mm aluminium voice-coil and aluminium basket, the brand-new MF136 woofer achieves high sensitivity and greater linearity to deliver a very balanced, natural sound.

2022_Dynaudio_WebIcon_ConeGraphic_60x60px_Black

X236 crossover


The X236 is designed for the integration of an automotive stereo system comprising a pair each of the MT136 tweeters and MF136 woofers.

Esotan MKII series

  • Component:
  • Diameter:
  • Mounting depth:
  • Frequency response:
  • Ajustable tweeter level:
  • Ajustable medium level:
  • Power rating (MRS/Max.):
  • Sensitivity (dB @ 2.83V/1m):
  • Impedance:
  • Tweeter case:
  • Midrange og woofer basket:
  • Mounting hardware:
  • Esotan 372 MKII
  • 3-way component system
  • 165mm/6.5"

  • 67mm/2.4"

  • 50Hz-20kHz
  • 0, -2dB
  • 0, +2dB

  • 150W/400W
  • 86dB
  • Aluminium
  • Aluminium
  • Included
  • Esotan 232 MKII
  • 2-way component system
  • 165mm/6.5"
  • 67mm/2.4"
  • 60Hz-20kHz
  • 0, -2dB
  • 0, +2dB
  • 60W/120W
  • 86dB
  • Aluminium
  • Included
  • Esotan 272 MKII
  • 2-way component system
  • 165mm/6.5"
  • 67mm/2.4"
  • 50Hz-20kHz
  • 0, -2dB
  • 0, +2dB
  • 150W/400W
  • 86dB
  • Aluminium
  • Aluminium
  • Included
  • Esotan 236 MKI
  • 2-way component system
  • 165mm/6.5"
  • 67mm/2.4"
  • 60Hz-20kHz
  • 0, -2dB
  • 0, +2dB
  • 80W/160W
  • 89dB
  • Aluminium
  • Included
