The Contour 2016 series

When you get a Dynaudio Contour you’re up in the big leagues. You can see it from the craftsmanship; you can hear it in the performance. And everyone else can, too.

It’s been that way since 1989. The performance of the original Contour dropped jaws all over the world – and each update has done the same over the past 27 years.

Your jaw is about to drop again.

We’ve moved on since 1989. You’ve moved on, too. That’s why we’ve applied all our experience, all our expertise – and all our passion – to looking at what made the original so good... and then making it even better.

It’s time for a new legend. This is a speaker re-thought, re-designed, re-engineered and re-built for 2017.

This is Contour.

Four models. One single-minded obsession with uncovering the truth in your music. (Also, something that’ll make all your friends jealous.)

The Contour range takes everything we know about speaker technology – we’re Danes; we know a lot – and puts it in four clean and great-sounding packages. One for every room size (or, if you’re in a studio flat, one for every neighbour type).

They all use the sweet-toned Esotar2 soft-dome tweeter, which has been a legend in its own right for years. It’s commonly regarded as one of the world’s best-ever drivers – and because it’s been such a great friend to so many millions of ears (and a key part of Contours past), we just had to give it another outing.

Designed from the ground up

The woofers, though, are original. They’re powered by lightweight aluminium voice-coils and a vented dual-ferrite magnet system, and were created by driver specialists Danny Pasfall Christensen and Andreas Eberhardt Sørensen and their team under acoustic maestro Daniel Emonts. (They can hear differences between alternative glues. We love those guys.)

They’re made from MSP – a material we developed ourselves, and have been using in our drivers since 1985. MSP gives exactly the right combination of stiffness and damping – which you’ll hear as exactly the right combination of power, finesse and control. Just what a Contour speaker should have. But we’ve taken it further: we’ve varied the diaphragm’s thickness across its surface for even greater control over its sound.

The Contour 60 has a completely redesigned 15cm midrange driver. Like the rest of our drivers it uses an aluminium voice-coil. It also uses a neodymium magnet system, and was designed using Finite Element Method optimisation techniques. We wanted the Contour 60 to retain that signature midrange sound in a large cabinet, without having to repurpose an existing driver for a job it wasn’t designed to do.

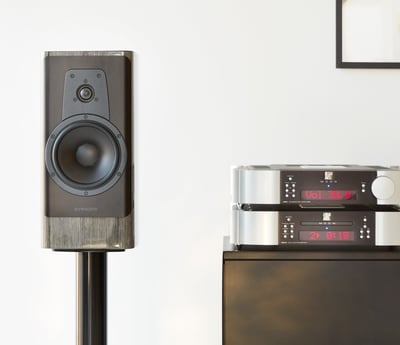

Dynaudio-Contour_08

Solid aluminium baffle

At Dynaudio we feel there’s always room for improvement – and our designers love to stretch their legs (you should see the number of sketches they produced for just this part). This baffle is aluminium, and set into the cabinet. Its chamfer is included in the driver’s basket – which not only looks great, but also improves the treble and provides a solid foundation for the drivers to do their work. A solid foundation means improved high-volume performance at low frequencies, too (although your neighbours might not thank us for that).

And although we might have changed the cabinet’s shape (square is out; curves are in), the updated design tips a respectful nod to older Contours. Look at it from the top; you’ll see the previous baffle design in its shape. But it isn’t just for show – the redesigned shape marries those aesthetics with cutting-edge physics. Its multi- layered construction is extremely well-damped, which means the Contour’s sound goes exactly where it’s supposed to: forwards.

We’ve redesigned the internal wiring and crossover, too. You won’t see what we’ve done, but you’ll hear the effect: amazingly clear sound, even off to the sides of the speakers. We love it – and you will, too.

And, of course, they all use high-quality materials and finishes. Our factory technicians make sure all Contours are furniture-grade: perfectly built, perfectly finished and perfectly packaged.

Dynaudio-Contour_11
Dynaudio-Contour_06_1200x1200
Dynaudio-Contour_12_1200x1200

Contour 2016

Specifications

  • Status:
  • Segment:
  • Series:
  • Type:
  • Sensitivity (dB @ 2.83V/1m):
  • IEC Power Handling (W):
  • Rated Impedance (Ohm):
  • Lower Cutoff (Hz @ +/- 3 dB):
  • Upper Cutoff (kHz @ +/- 3 dB):
  • Box Principle:
  • Crossover:
  • Crossover Frequency (Hz):
  • Contour 60
  • Discontinued
  • Home
  • Contour
  • Floorstand
  • 88
  • 390
  • 4
  • 28
  • 23
  • Bass reflex rear ported
  • 3-way
  • 220,4500 Hz
  • Contour 30
  • Discontinued
  • Home
  • Contour
  • Floorstand
  • 87
  • 300
  • 4
  • 32
  • 23
  • Bass reflex rear ported
  • 2.5-way
  • (300),2200 Hz
  • Contour 20
  • Discontinued
  • Home
  • Contour
  • Bookshelf
  • 86
  • 180
  • 4
  • 39
  • 23
  • Bass reflex rear ported
  • 2-way
  • 2200 Hz
  • Contour 25C
  • Discontinued
  • Home
  • Contour
  • Center
  • 87
  • 300
  • 4
  • 35
  • 23
  • Bass reflex rear ported
  • 2.5-way
  • (300),2200 Hz
