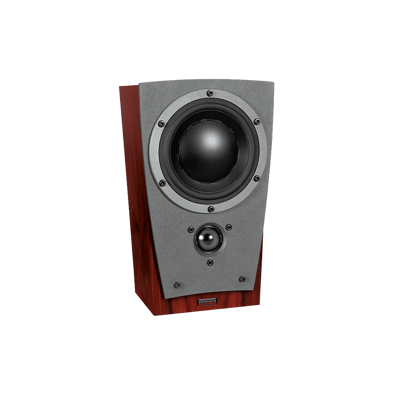

Contour S R
This rear speaker was conceived to deliver authentic Dynaudio performance in applications where conventional loudspeakers are not viable.

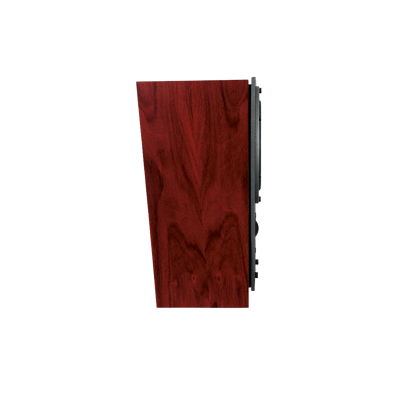

The S R expands the Contour performance level to the same high level of quality as the other models within the range. Its unique, compact geometry renders it discreet, a real advantage when mounting it onto a wall or integrating it into a living environment. Its narrowly tapered, angular shape renders it stylish as well.
The Contour S R thus is a perfect solution as an elegant high-quality loudspeaker to complement a plasma display monitor, as well as a very high performance surround loudspeaker for any Contour multi-channel system.
The S R, the smallest of the Contour models, features the same high-quality Dynaudio drivers exclusive to this range, ensuring a seamless sonic integration into any system comprised of any model Contour mains and the S C center.
The Contour S R is available in a choice of real-wood veneer finishes:Maple, Cherry, Rosewood and Black Ash. Several other real-wood veneers and Piano Clear Lacquer, White Piano Lacquer and Black Piano Lacquer are available upon request per special order.
Contour S R
Specifications
- Status Discontinued
- Segment Home
- Series Contour
- Type On-Wall
- Sensitivity (dB @ 2.83V/1m) 86
- IEC Power Handling (W) 150
- Rated Impedance (Ohm) 4
- Box Principle Bass reflex rear ported
- Crossover 2-way
- Crossover Frequency (Hz) 1400 Hz
- Tweeter 28 mm Soft Dome
- Midrange/Woofer 15 cm MSP
- Weight kg 10.3
- Weight lbs 22.7
- Width mm 490
- Height mm 160
- Depth mm 303
- Width inches 19 2/8
- Height inches 6 2/8
- Depth inches 11 7/8
