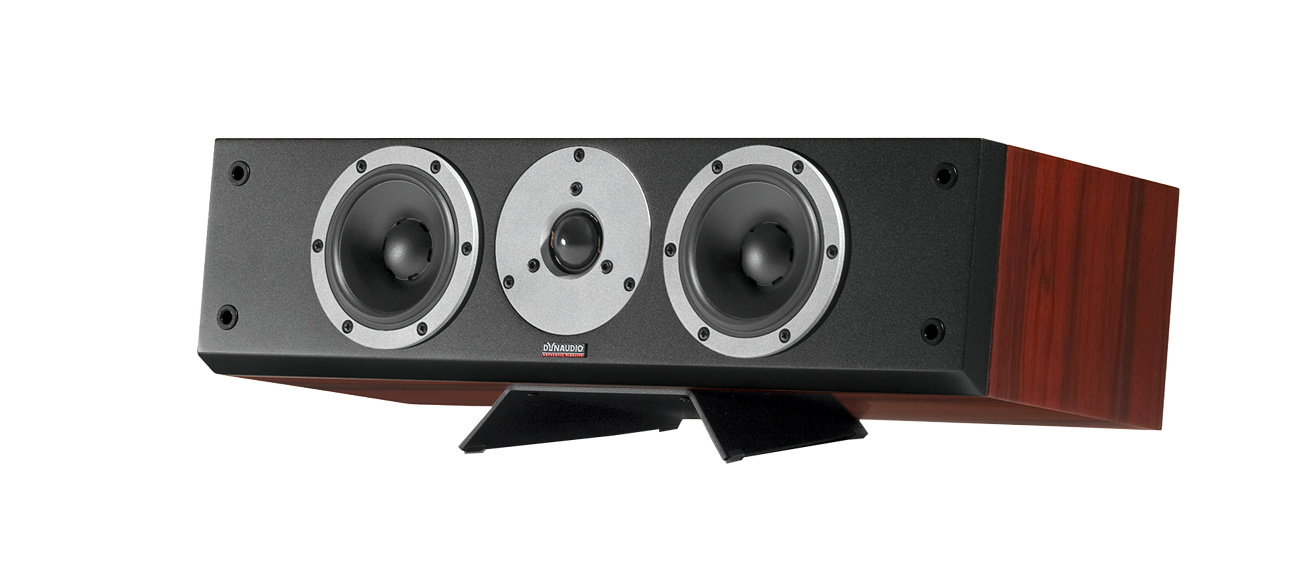

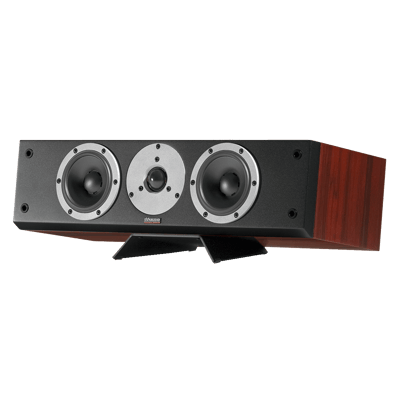

Excite X22 Center
Impressive realism for convincing home cinema: The Dynaudio Excite X22 is a universal center channel loudspeaker that combines maximum sonic performance with minimum cabinet space. Movie sound effects and musical soundscapes from DVD and HD discs truly need to be reproduced naturally in order to fully impress.
The sound simply must fit to the colourful, sharp, high-resolution picture. With its completely originally-developed compact mid/bass and tweeter drive units, the X22 presents sound in brilliant shades and vivid detail.
Thanks to its bass-reflex construction, the compact speaker even reproduces the deepest notes. The basis for this high level of performance is an extremely rigid cabinet construction which is particularly anti-resonant, thus also reducing the effects of vibration from the surface beneath it. An ideal dispersion angle is attained via the integrated metal plinth.
With the Dynaudio Excite X22 Center, movie sequences come to life if full authenticity, music becomes vivid – multi-channel music and home theatre will be a truly deep and extremely moving experience.
X22 Center
Specifications
- Status Discontinued
- Segment Home
- Series Excite
- Type Center
- Sensitivity (dB @ 2.83V/1m) 86
- IEC Power Handling (W) 150
- Rated Impedance (Ohm) 4
- Lower Cutoff (Hz @ +/- 3 dB) 58
- Upper Cutoff (kHz @ +/- 3 dB) 23
- Box Principle Bass reflex rear ported
- Crossover 2-way
- Crossover Frequency (Hz) 1800 Hz
- Tweeter 28 mm Soft Dome
- Midrange/Woofer 2x11 cm MSP
- Weight kg 7
- Weight lbs 15.4
- Width mm 500
- Height mm 130
- Depth mm 210
- Width inches 19 5/8
- Height inches 5 1/8
- Depth inches 8 2/8
