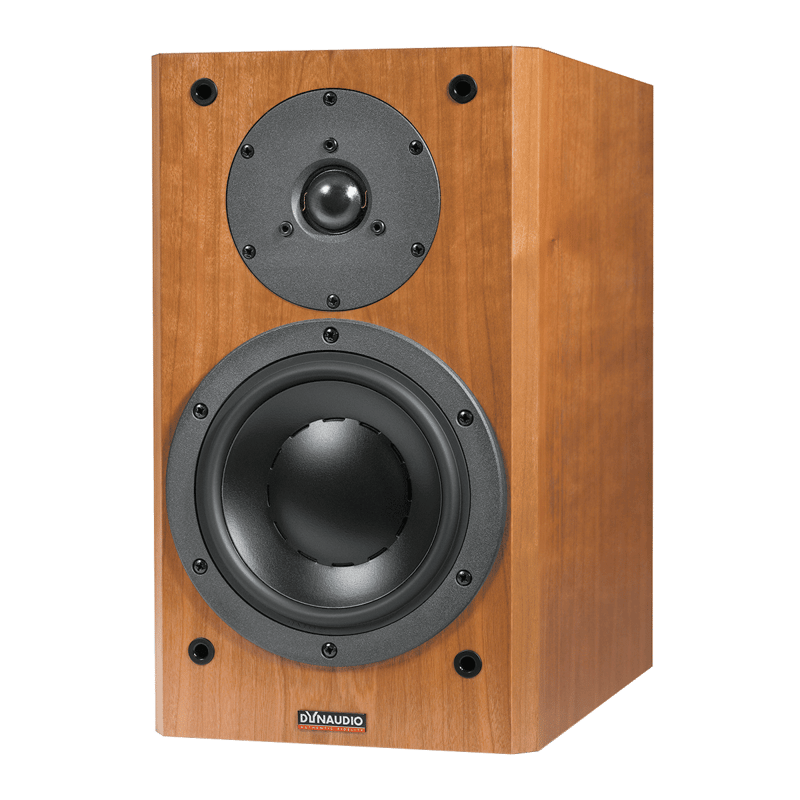

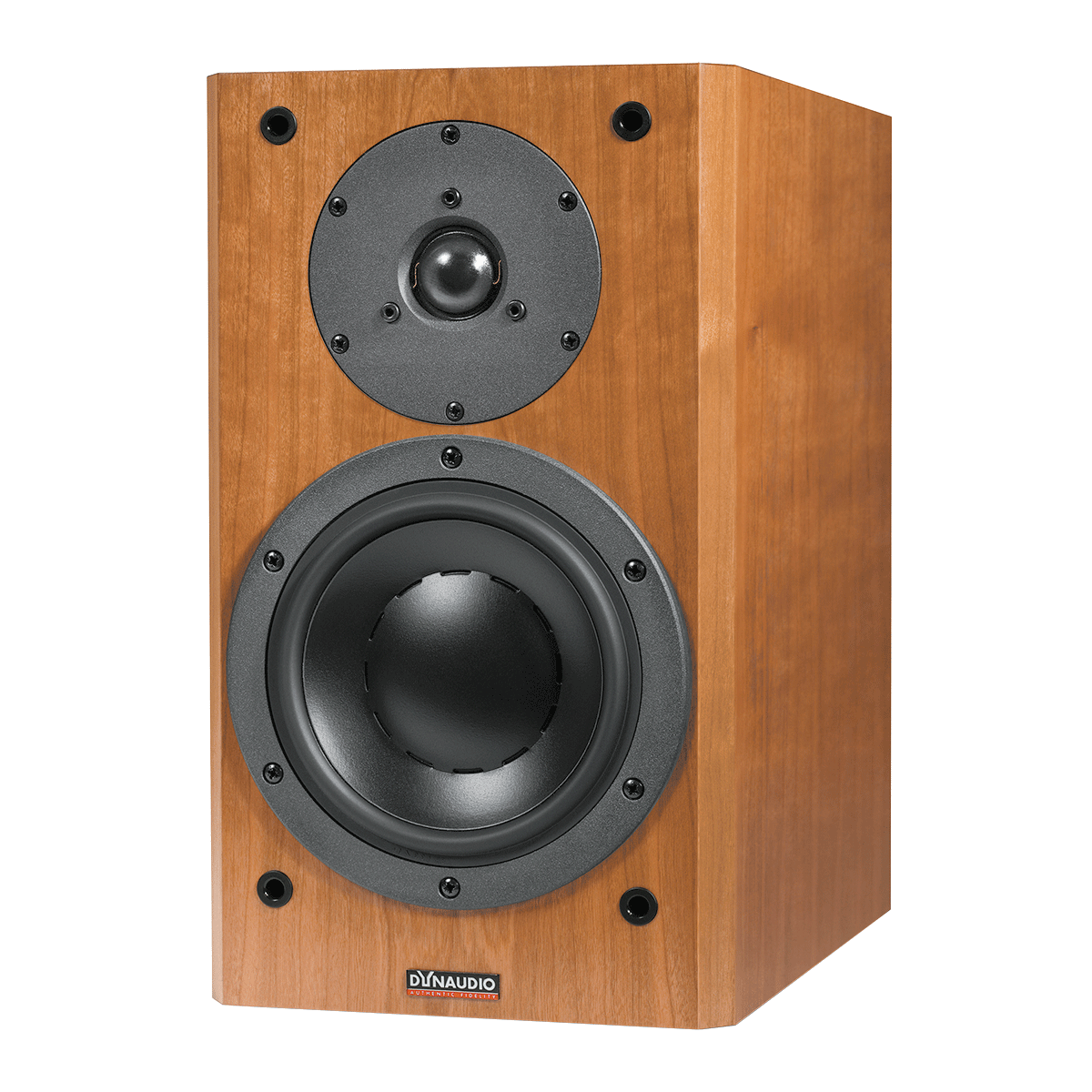

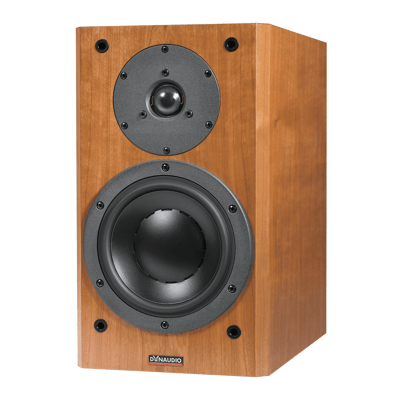

Focus 140
The Focus 140 embodies all of the virtues in Dynaudio’s long-standing tradition of high-performance compact loudspeakers: Highly evolved Dynaudio technology, meticulously selected components, painstakingly matched materials and carefully voiced sonics. Every technical detail is developed and manufactured exclusively by Dynaudio.
One example is the sophisticated cross-over designed for the Focus 140, which unifies the speaker drivers to deliver a seamless and homogenous presentation. Air-coils wound with the purest copper, high-grade Solen capacitors and zero temperature drift ceramic resistors provide the absolute purity essential for natural music reproduction. To achieve a seamless transition between bass and treble, Dynaudio cross-overs always feature simple 1st order filters (6dB/octave). These networks deliver a superior transient response, which further improves dynamics with lively music recordings.
Passion for detail also leads to perfection in the Esotec+ tweeter. The fine soft dome features a special coating to facilitate an extended high frequency response free of distortion. Suspended in ferro-fluid for controlled damping, an extremely light aluminium voice-coil drives the dome. In tandem with the incredibly powerful Neodym magnet, sound reproduction remains amazing and dynamic. The Esotec+ technology lets you fully experience the unparalleled power this seemingly familiar technology is capable of.
Focus 140
Specifications
- Status Discontinued
- Segment Home
- Series Focus
- Type Bookshelf
- Sensitivity (dB @ 2.83V/1m) 86
- IEC Power Handling (W) 200
- Rated Impedance (Ohm) 4
- Lower Cutoff (Hz @ +/- 3 dB) 41
- Upper Cutoff (kHz @ +/- 3 dB) 25
- Box Principle Bass reflex rear ported
- Crossover 2-way
- Tweeter 28 mm Soft Dome
- Midrange/Woofer 17 cm MSP
- Weight kg 8.5
- Weight lbs 18.7
- Width mm 203
- Height mm 350
- Depth mm 295
- Width inches 8
- Height inches 13 6/8
- Depth inches 11 5/8
