AIR 20

AIR 20

Three-way active nearfield monitor - 10" woofer, 5.5" midrange and 1.1 soft dome tweeter.

The AIR 20 monitor is the first three-way design integrating the AIR technology.

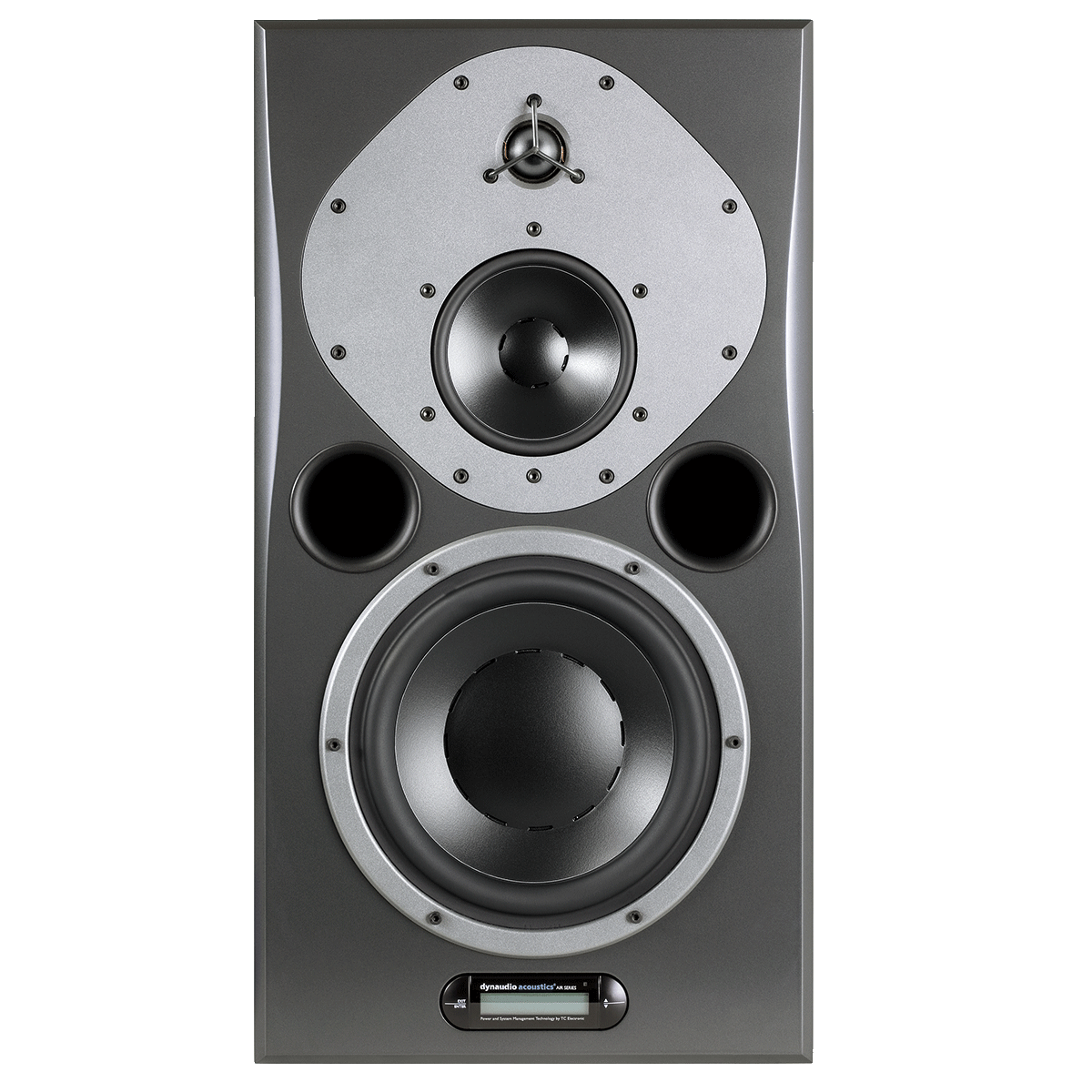

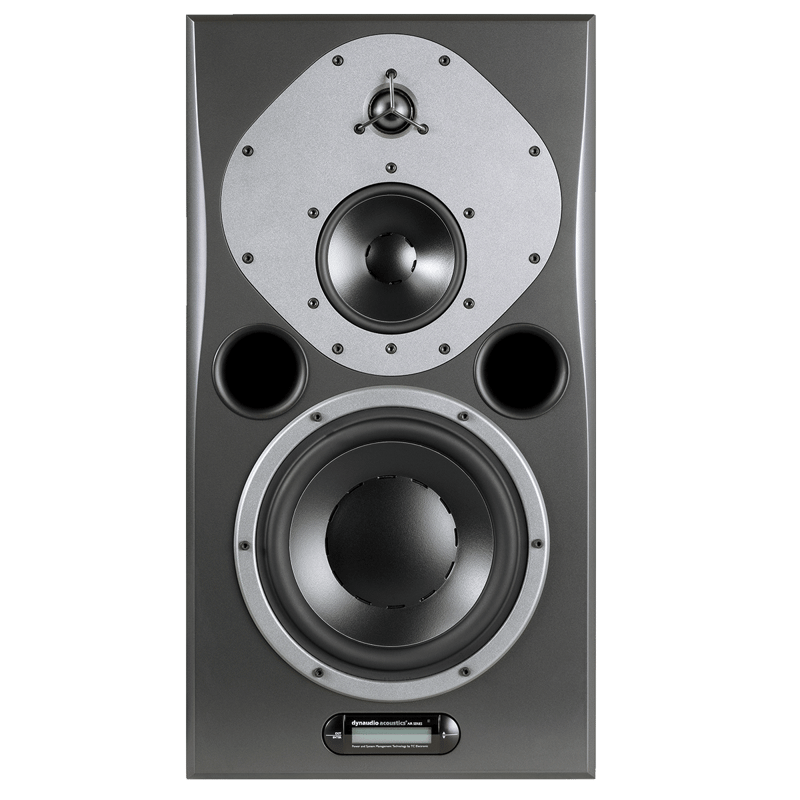

Front view of Air 20

Choose finish

Introduction

AIR 20

Three-way active nearfield monitor - 10" woofer, 5.5" midrange and 1.1 soft dome tweeter.

The AIR 20 monitor is the first three-way design integrating the AIR technology. Combining brand new Dynaudio 221 (two-toone) technology with cutting-edge digital TC technology, the AIR 20 defines new standards for performance and precision in three-way powered monitors.



The AIR 20 monitor is the first three-way design integrating the AIR technology. Combining brand new Dynaudio 221 (two-toone) technology with cutting-edge digital TC technology, the AIR 20 defines new standards for performance and precision in three-way powered monitors.

Designed for stereo and multichannel monitoring alike, any demanding environment like post production, music recording and film editing will benefit greatly from the technology inherent in AIR 20.

DVD authoring, 5.1 productions and broadcasting will be equally honored by the perfect integration and listening that the AIR 20 delivers.

DSP room adaption allows for perfect customization for any room construction and its inter-monitor level calibration feature ensures consistent levels in all sessions.



Technical specifications

Specification sheet for Air + Air Software part 1
System: Three way active monitoring system
Frequency Response (+/- 3 dB): 31 Hz –22 kHz: +/- 3 dB
Peak SPL 1m, pair (IEC Short Term): 131dB peak
Peak SPL 2m, 5.1 (IEC Short Term): 125 dB peak
Max SPL 1m, (IEC Long Term): 104 dB RMS
Precision of monitor matching: +/- 0.2 dB
Port tuning frequency: 40 Hz
Internal cabinet volume: 35 liters
Bass Principle: Bass reflex
Crossover frequency: 390 Hz (DSP generated) and 2600 Hz
Crossover slope: 12 dB/oct and 6 dB/oct
Tweeter: Esotar 28 mm / 1.1” soft dome, neodymium magnet, rear chamber, magnetic fluid, 4mm alu front, pure alu wire voice coil
Midrange: 145 mm / 5,5", one-piece molded polypropylene cone, 38 mm /
Woofer: 240 mm / 9,5", one-piece molded polypropylene cone, 100 mm /
Mains Voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select)
Power consumption: 45 W @ 1/8 max power (IEC 60065)
Amp: Black painted back plate
Cabinet: Black ash with dark gray MDF baffle
Dimensions: 575 x 310 x 395 mm / 22,6” x 12,2” x 15,5”
Weight: 28 kg / 62.2 lbs
Tweeter, midrange and woofer: Tweeter & Midrange 200 W amp/Woofer 200 W amp
Specification sheet for Air + Air Software part 2
Tweeter, midrange and woofer: Tweeter & Midrange 200 W amp/Woofer 200 W amp
Typical listening distance: 1.5-3 m / 5-10.2 ft
Typical room size: 80-130 m3 / 2800-4600 ft3
Internal sample rate: 192 and 176.4 via Dual Wire (optional Digital Card required) and 96, 88.2, 64, 48, 44.1 or 32 kHz
I/O Connectors: XLR (2 channels AES/EBU in) 3 x RJ 45 proprietary TC Link
Formats: AES/EBU (24 bit)
Word clock input: BNC, 75ohm, 0.6-10 Vpp
Display: 2 x 16 character dot matrix
Operation: Menu system / Four buttons
Input connectors: XLR balanced (pin 2+, pin 3-)
Impedance: 10/3 k ohm (Balanced/unbalanced)
Selectable Full scale Input level: +9, +15, +21, +27 dBu
Dynamic range: > 113 dB typ. (unweighted), BW: 20-20 kHz
THD+N: < -105 dB typ. @ 1 kHz, -3 dBFS
Crosstalk: < -120 dB, 20 Hz to 20 kHz
A to D Conversion: 24 bit (Dual bit delta sigma sampling at 4.1/5.6/6.1/6.1 MHz)
I/O Connectors: 2 x RJ45 proprietary TC-Link
Complies with: EN 55103-1 and EN 55103-2, FCC part 15 class B, CISPR 22 class B
Certified to: IEC 60065, EN 60065, UL 6500 and CSA E60065 CSA FILE #LR108093
