AIR 25

Air 25

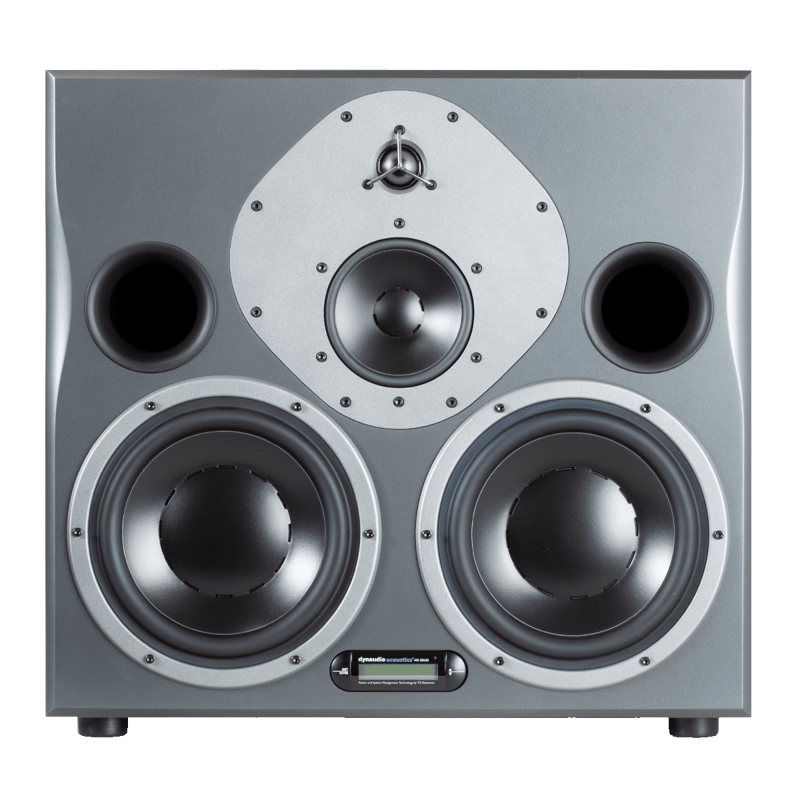

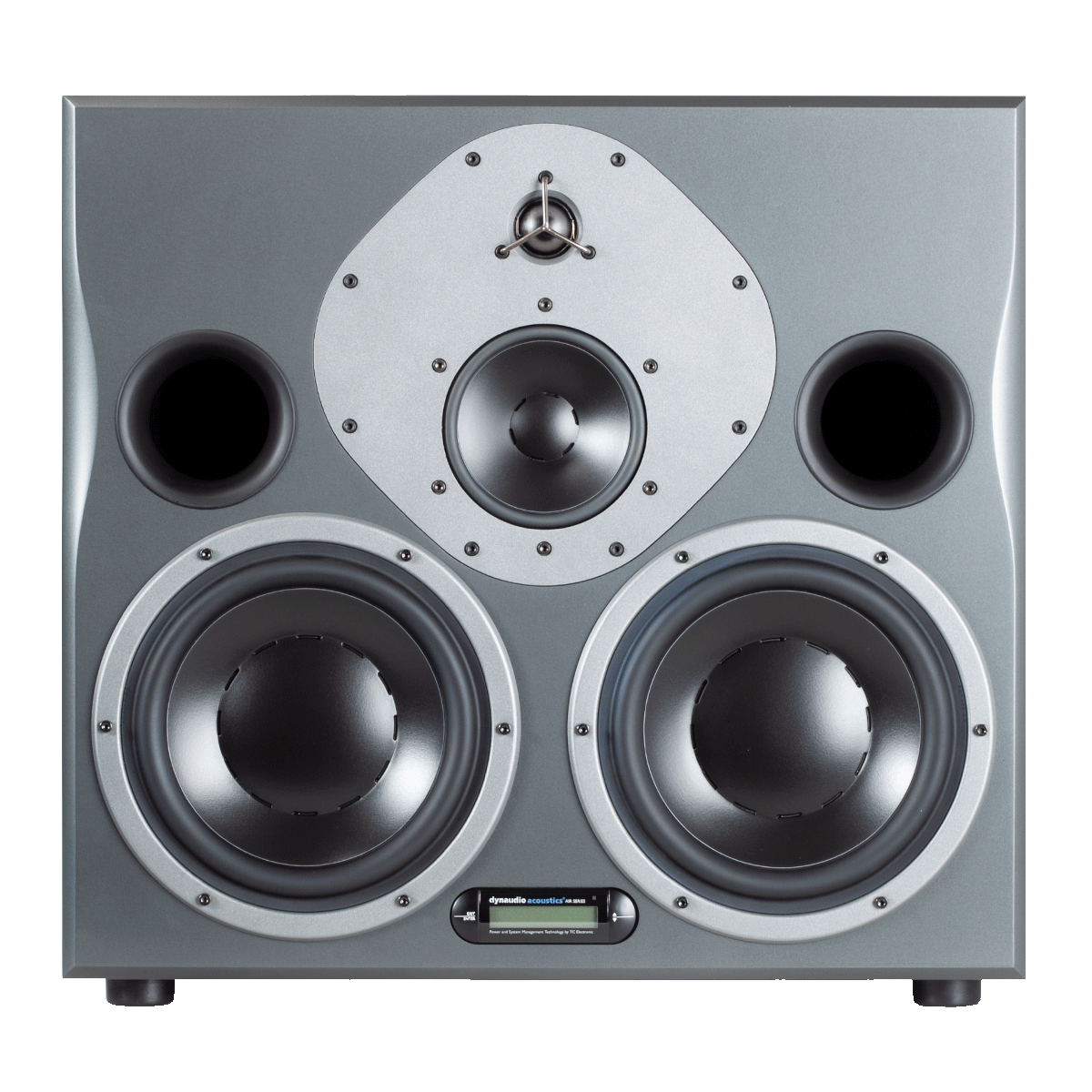

Three-way active near/midfield monitor - two 10" woofers, 5.5" midrange and 1.1 soft dome tweeter.

AIR 25 is the "big brother" of the AIR Series. Delivering unprecedented clarity combined with massive power, this monitor will take care of the most demanding listening requirements.

Choose finish

Introduction

AIR 25

With four massive built-in amps enabling more than 1200 watts of power, the AIR 25 is designed for large music studios, and mastering and post production facilities where power is an issue.

This monitor is equally suited for stereo as well as multichannel monitoring.

DSP room adaption allows for perfect customization for any room construction and its inter-monitor level calibration feature ensures consistent levels in all sessions.

Three-way active near/midfield monitor - two 10" woofers, 5.5" midrange and 1.1 soft dome tweeter.

AIR 25 is the "big brother" of the AIR Series. Delivering unprecedented clarity combined with massive power, this monitor will take care of the most demanding listening requirements.

With four massive built-in amps enabling more than 1200 watts of power, the AIR 25 is designed for large music studios, and mastering and post production facilities where power is an issue.

This monitor is equally suited for stereo as well as multichannel monitoring.

DSP room adaption allows for perfect customization for any room construction and its inter-monitor level calibration feature ensures consistent levels in all sessions.

Specification sheet for Air + Air Software part 2
System:	Three-way Active Nearfield Monitor
Frequency response (+/- 3 dB):	28 Hz –22 kHz: +/- 3 dB
Peak SPL 1m, pair (IEC Short Term):	134 dB peak
Peak SPL 2m, 5.1 (IEC Short Term):	128 dB peak
Max SPL 1m, (IEC Long Term):	107 dB RMS
Precision of monitor matching:	+/- 0.2 dB
Port tuning frequency:	35 Hz
Internal Cabinet Volume:	68 litres
Bass principle:	Bass reflex
Crossover frequency:	400 Hz and 2400 Hz (DSP generated)
Crossover slope:	12/6 dB/Oct, 12/6 dB/Oct
Tweeter:	Esotar 28 mm / 1.1” soft dome, neodymium magnet, rear chamber, magnetic fluid, 4mm alu front, pure alu wire voice coil
Midrange:	145 mm / 5,5", one-piece molded polypropylene cone, 38 mm /
Woofer:	2x240 mm / 9,5", one-piece molded polypropylene cone, 100
Mains voltage:	100 to 240 VAC, 50 to 60 Hz (select)
Power consumption:	45 W @ 1/8 max power (IEC 60065)
Amp:	Black painted back plate
Cabinet:	Black ash with dark gray MDF baffle

Specification sheet for Air + Air Software part 1
Dimensions (H x W x D):	510 x 535 x 450 mm /20” x 21” x 17,7”
Depth incl. amp and driver:	490mm / 19,3”
Weight:	46 kg / 101 lbs
Tweeter, midrange and woofer:	Tweeter 300 W amp/Midrange 300 W amp/Woofer 2x300 W amp
I/O Connectors:	XLR (2 channels AES/EBU in) 3 x RJ 45 proprietary TC Link
Formats:	AES/EBU (24 bit)
Word clock input:	BNC, 75ohm, 0.6-10 Vpp
Display:	2 x 16 character dot matrix
Operation:	Menu system / Four buttons
Input connectors:	XLR balanced (pin 2+, pin 3-)
Impedance:	10/3 k ohm (Balanced/unbalanced)
Selectable Full scale Input level:	+9, +15, +21, +27 dBu
Dynamic range:	> 113 dB typ. (unweighted), BW: 20-20 kHz
THD+N:	< -105 dB typ. @ 1 kHz, -3 dBFS
Crosstalk:	< -120 dB, 20 Hz to 20 kHz
A to D Conversion:	24 bit (Dual bit delta sigma sampling at 4.1/5.6/6.1/6.1 MHz)
I/O Connectors:	2 x RJ45 proprietary TC-Link
Complies with:	EN 55103-1 and EN 55103-2, FCC part 15 class B, CISPR 22 class B
