BM 6

BM6

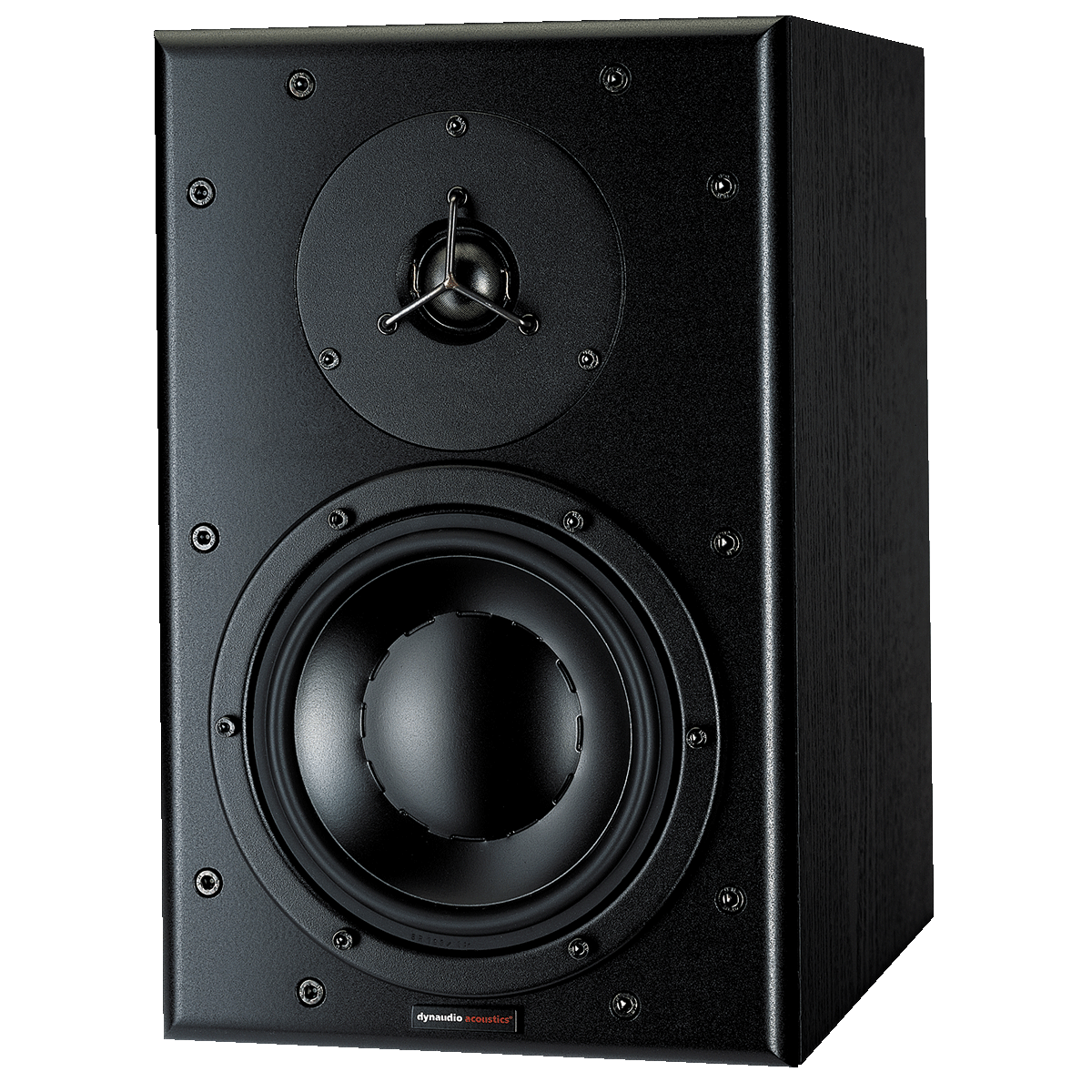

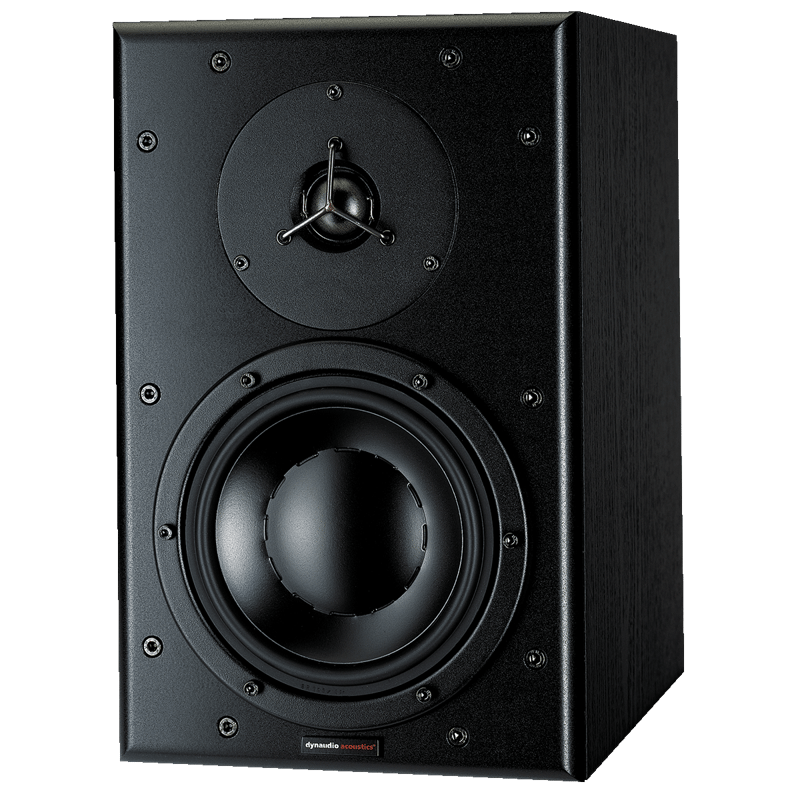

The Dynaudio Acoustics nearfield monitor BM6 is a 2-way passive system comprising a 175mm (6.5") woofer and a 28mm (1.25") ESOTEC soft dome tweeter, housed in a ported cabinet.

BM6

Choose finish

Introduction

BM6

The Dynaudio Acoustics nearfield monitor BM6 is a 2-way passive system comprising a 175mm (6.5") woofer and a 28mm (1.25") ESOTEC soft dome tweeter, housed in a ported cabinet. The BM 6 Nearfield Monitor establishes a firm and realistic link between the production environment and the increasingly high demands of the consumers. The sound of the BM 6 is clean, punchy, accurate and transparent, and when using quality amplifiers with good current capabilities, excellent results will be achieved.

The Dynaudio Acoustics nearfield monitor BM6 is a 2-way passive system comprising a 175mm (6.5") woofer and a 28mm (1.25") ESOTEC soft dome tweeter, housed in a ported cabinet.

The BM 6 Nearfield Monitor establishes a firm and realistic link between the production environment and the increasingly high demands of the consumers. The sound of the BM 6 is clean, punchy, accurate and transparent, and when using quality amplifiers with good current capabilities, excellent results will be achieved.

The BM 6 is a nearfield monitor for those who require more power and improved high frequency definition. It employs the same bass driver as the BM 5, but additionally offers a refined crossover circuitry and the very latest ESOTEC soft dome tweeter, delivering resolution without sharpness and dynamic response without aggression.

Applications for the BM 6 cover every aspect of sound engineering and reproduction, including music and speech monitoring and mixing, radio station, OB vehicles, edit suites, post production, recording studios and playback rooms.


Their small size combined with their brilliant performance also make them suitable for use as rear channel speakers in surround systems.  In combination with the BM 9S it is also well suited for a full-blown 5.1 system in smaller rooms.

Technical specifications

Specification sheet for BM Legacy part 2
System: 2-way Passive Nearfield Monitor
Frequency Response: (+/- 3 dB) $ 43 Hz - 20 kHz
Peak SPL 1m, pair: (IEC Short Term) $ > 125 dB peak
Peak SPL 2m, 5.1: (IEC Short Term) $ > 126.5 dB peak
Max SPL 1m: (IEC Long Term) - 103 dB RMS
Amplifier minimum: 40 W (> 94 dB SPL @ 1,5m)
Sensitivity (2.83 V/1m): 86 dB
Impedance, Nominal: 4 ohm
Impedance, HF (200 kHz): 5,4 ohm
Specification sheet for BM Legacy part 1
Resonance Frequency: 54 Hz
Internal Cabinet Volume: 10,5 liters
Bass Principle: Bass reflex
Crossover Frequencies: 3100 Hz
Crossover Slope: Woofer 6 dB/oct; Tweeter 12 dB/oct
Tweeter: Esotec 28 mm soft dome Magnetic fluid, Rear chamber Pure alu wire voice coil, 4 mm die-cast alu front
Woofer: 17 cm, One-piece molded polypropylene cone, 75 mm pure alu wire voice coil Weight $ 6.9 kg / 15.2 lbs
Dimensions (WxHxL): 204 x 330 x 254 mm / 8” x 12.9” x 10”
