BM 12A

BM12A

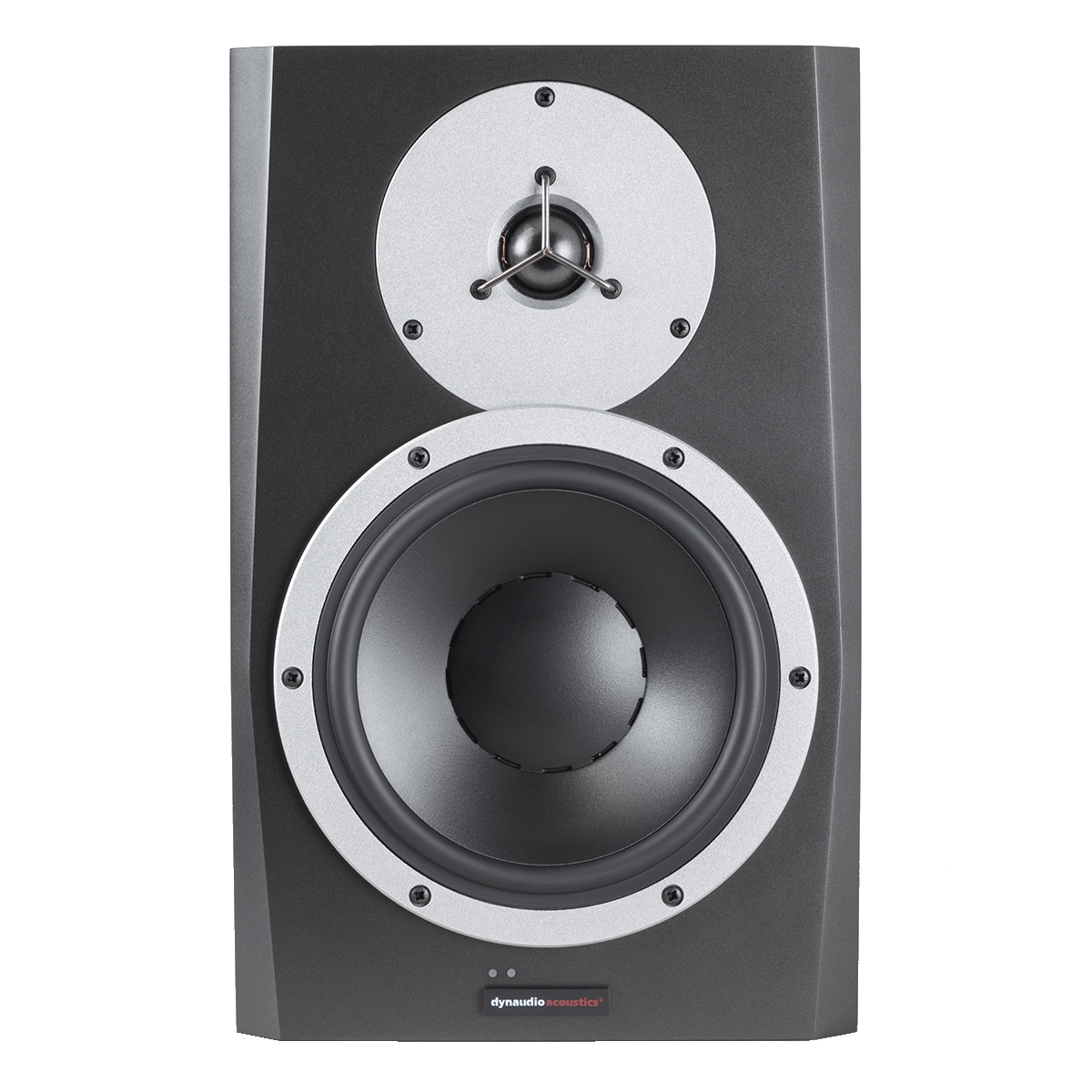

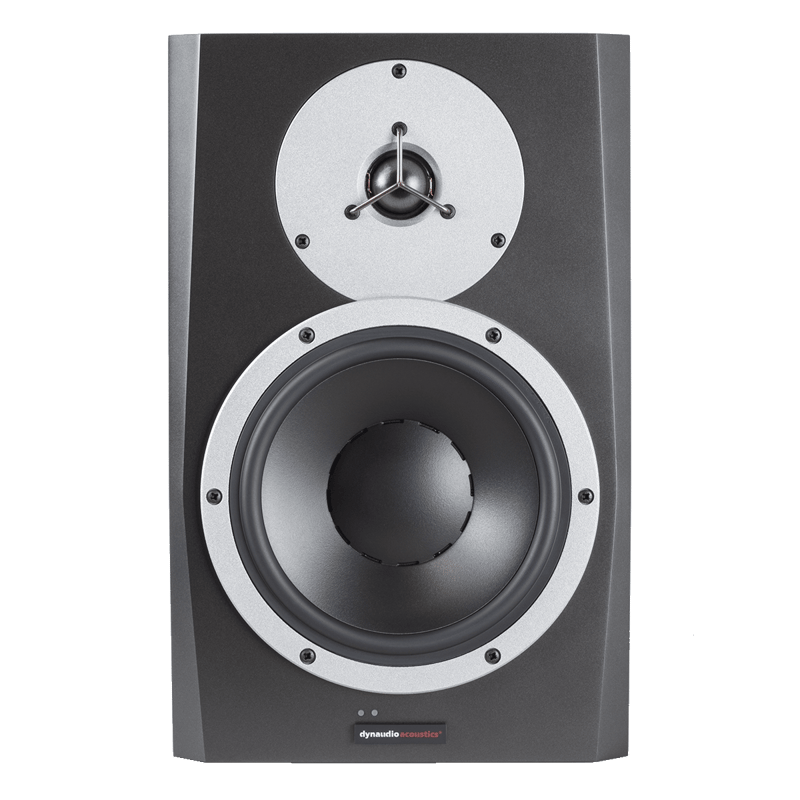

Two-way full analog active nearfield monitor - 8" neodymium magnet woofer and 1.1" soft dome neodymium tweeter This medium-sized nearfield monitor delivers the worldrenowned Dynaudio clarity and transparency, building on the latest Dynaudio Professional neodymium driver technology.

BM12A

Choose finish

Introduction

BM12A

Two-way full analog active nearfield monitor - 8" neodymium magnet woofer and 1.1" soft dome neodymium tweeter This medium-sized nearfield monitor delivers the worldrenowned Dynaudio clarity and transparency, building on the latest Dynaudio Professional neodymium driver technology.

The onboard placement and subwoofer adaptation filters allows BM12A to blend seamlessly into a large range of applications such as OB vans, project studios, post production facilities etc.

Technical specifications

Specification sheet for BM Series part 2
System: Two-way Active Nearfield Monitor
Frequency Response (+/- 3 dB): 38 Hz - 21 kHz
Max SPL 1m, pair (IEC Short Term): 123 dB RMS
Max SPL 2m, 5.1 (IEC Short Term): 124.5 dB RMS
Input level for 85 dB SPL @1m (+4/-10): -18dBu RMS @ 0dB setting
Input level for max peak SPL (+4/-10): +12dBu RMS @ 0dB setting
Power consumption: Idle: 15 W / Max: 130 W
Amplifier power: Tweeter: 50 W / Woofer: 100 W
Resonance Frequency: 40 Hz
Specification sheet for BM Series part 1
Internal Cabinet Volume: 13.6 liters
Bass Principle: Bass reflex
Crossover Frequencies: 1500 Hz
Crossover Slope: 6 dB/oct
Tweeter: 200 mm/8” Neodymium, One-piece molded poly-prop cone, 75 mm/3” kapton voice coil
Woofer: 200 mm/8” Neodymium, One-piece molded poly-prop cone, 75 mm/3” kapton voice coil
Weight: 12.1 kg / 26.6 lbs
Dimensions (W x H x D): 234 x 370 x 327 mm / 9.2” x 14.6” x 12.9”
