BM5A Compact

BM5A Compact

The BM5A Compact is an extremely small yet surprisingly powerful monitor, designed for professional film & post production and broadcast applications.



BM5

Choose finish

Introduction

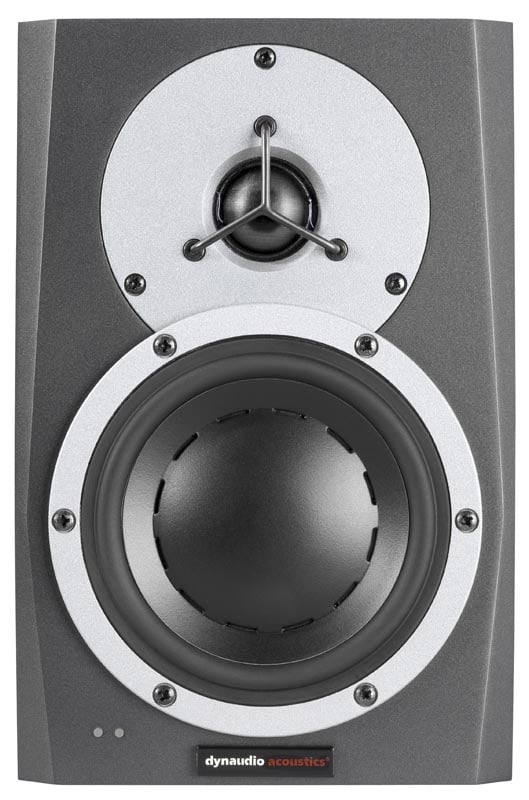

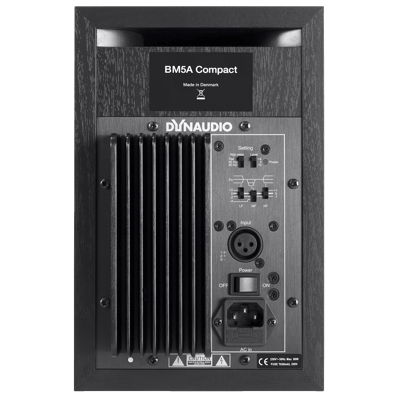

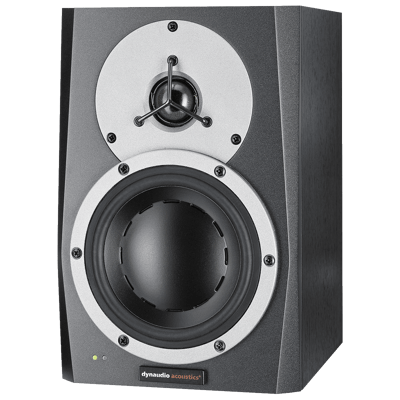

BM5A Compact

The BM5A Compact is an extremely small yet surprisingly powerful monitor, designed for professional film & post production and broadcast applications.

Extensive research has made it possible to fit an impressive 2 x 50 watt amplification into a cabinet that is as small as 170 x 260 x 235 mm / 6.7" x 10.2" x 9.3". OB vans, editing suites and film & post production facilities will benefit greatly from this monitor, which provides loads of power in virtually no space.
Combined with the BM9S it will make up an excellent multichannel system of minute dimensions.

Technical specifications

Specification sheet for BM Series part 2
System: Two-way Active Nearfield Monitor
Max SPL 1m, pair (IEC Short Term): 115 dB peak
Max SPL 2m, 5.1 (IEC Short Term): 116 dB peak
Input level for 85 dB SPL @1m (+4/-10): -16dBu RMS @ 0dB setting
Input level for max peak SPL (+4/-10): +9dBu Peak @ 0dB setting
Power consumption: Idle: 10 W / Max: 90 W
Amplifier power: Tweeter: 50 W / Woofer: 50 W
Resonance Frequency: 58 Hz
Specification sheet for BM Series part 1
Internal Cabinet Volume: 4.8 liters
Bass Principle: Bass reflex
Crossover Frequencies: 1500 Hz
Crossover Slope: 6 dB/oct
Tweeter: Esotec 28 mm/1.1” soft dome, rear chamber, Magnetic fluid. 4 mm alu front, Pure alu wire voice coil
Woofer: 145 mm/5.7”, One-piece molded poly-prop cone, 75 mm/3” pure alu voice coil
Weight: 7 kg / 15.4 lbs
Dimensions (W x H x D): 170 x 260 x 235 mm / 6.7” x 10.2” x 9.3”
