BM6A MKII professional two-way full analog active nearfield monitor

Introduction

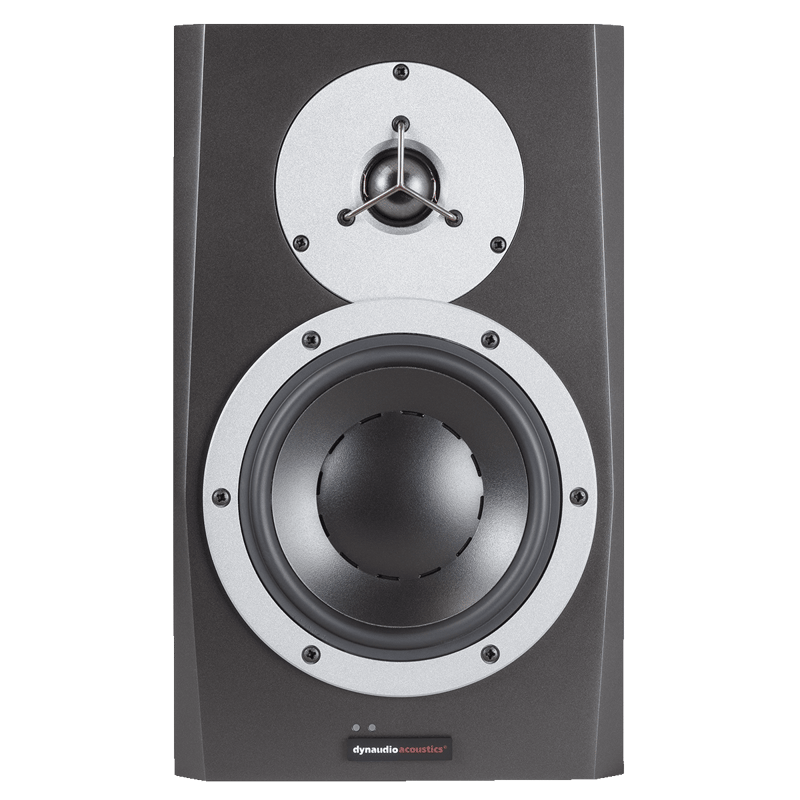

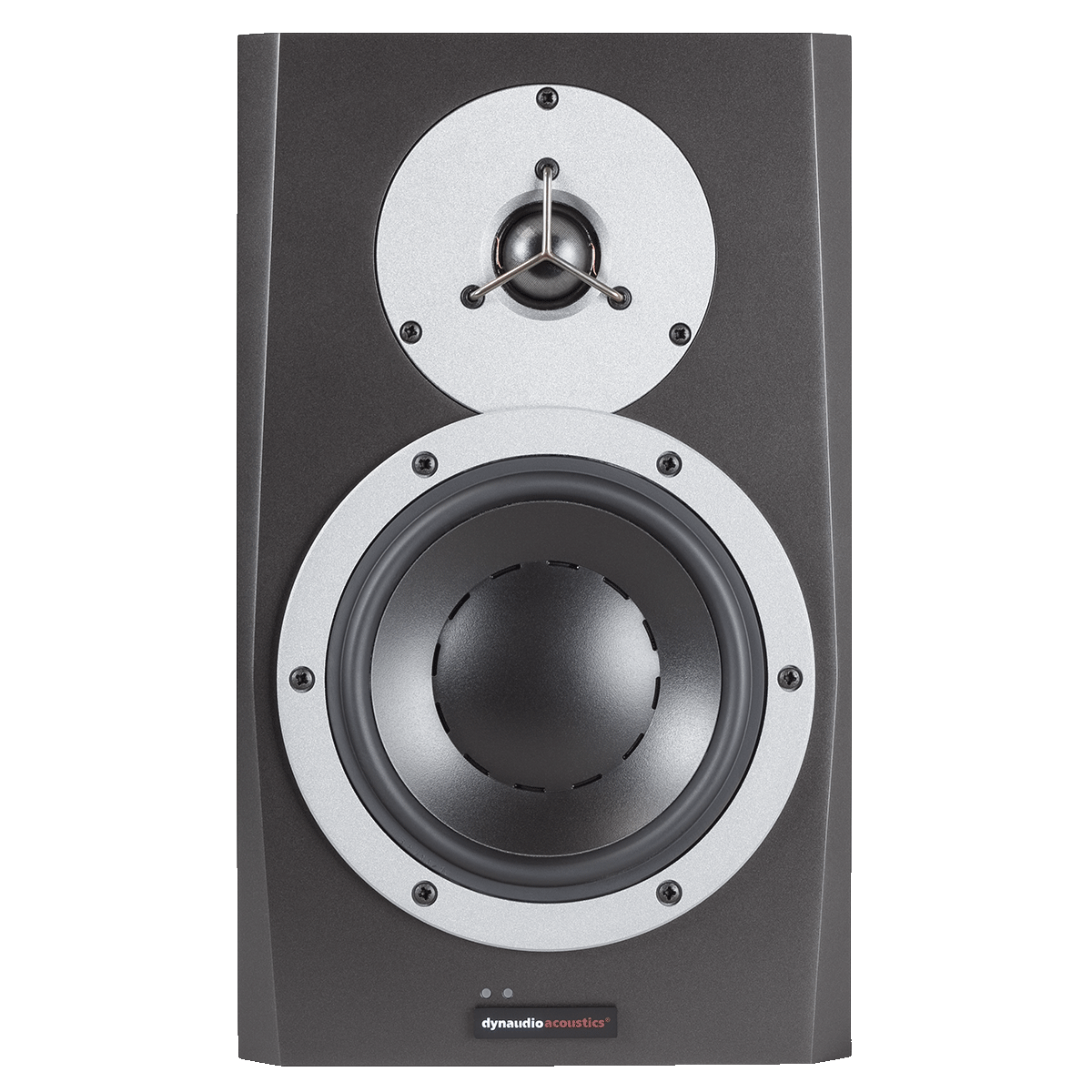

BM6A MKII

Two-way full analog active nearfield monitor - 6.9" woofer and 1.1" soft dome tweeter.

The BM6A MKII delivers the distinctive Dynaudio Professional objectivity and accuracy exposing every audible detail to the critical and demanding engineer - be it in music monitoring, mixing, broadcasting, OB vans, editing suites, post production facilities and project studios.

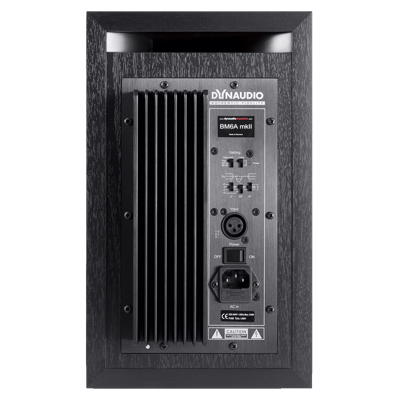

Onboard LF/MF/HF placement filters as well as subwoofer high-pass filters allow optimal adaptation in any application including a powerful combination with the BM14S.

Specification sheet for BM Series part 1
System:	Two-way Active Nearfield Monitor
Frequency Response:	40 Hz - 21 kHz
Max SPL 1m, pair:	119 dB peak
Max SPL 2m, 5.1:	120 dB peak
Input level for 85 dB SPL @ 1m (+4/-10):	-14dBu RMS @ 0dB setting
Input level for max peak SPL (+4/-10):	+12dBu Peak @ 0dB setting
Power consumption:	Idle: 15 W / Max: 130 W
Amplifier power:	Tweeter: 50 W / Woofer: 100 W
Resonance Frequency:	37 Hz
Internal Cabinet Volume:	11.7 liters

Specification sheet for BM Series part 2
Bass Principle:	Bass reflex
Crossover Frequencies:	1500 Hz
Crossover Slope:	6 dB/oct
Tweeter:	Esotec 28 mm/1.1” soft dome, rear chamber, Magnetic fluid. 4 mm die-cast alu front, Pure alu wire voice coil
Woofer:	175 mm/7”, One-piece molded poly-prop cone, 75 mm/3” pure alu voice coil
Weight:	10.5 kg / 23.12 lbs
Dimensions (WxHxL):	203 x 335 x 327 mm / 8” x 13.2” x 12.9”
