BM 9S

BM9S

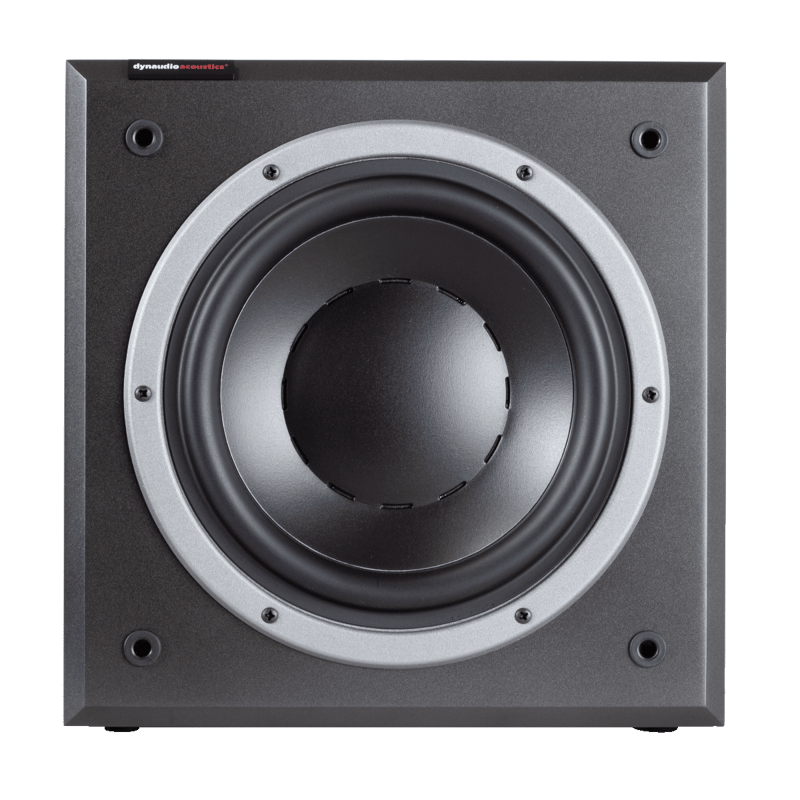

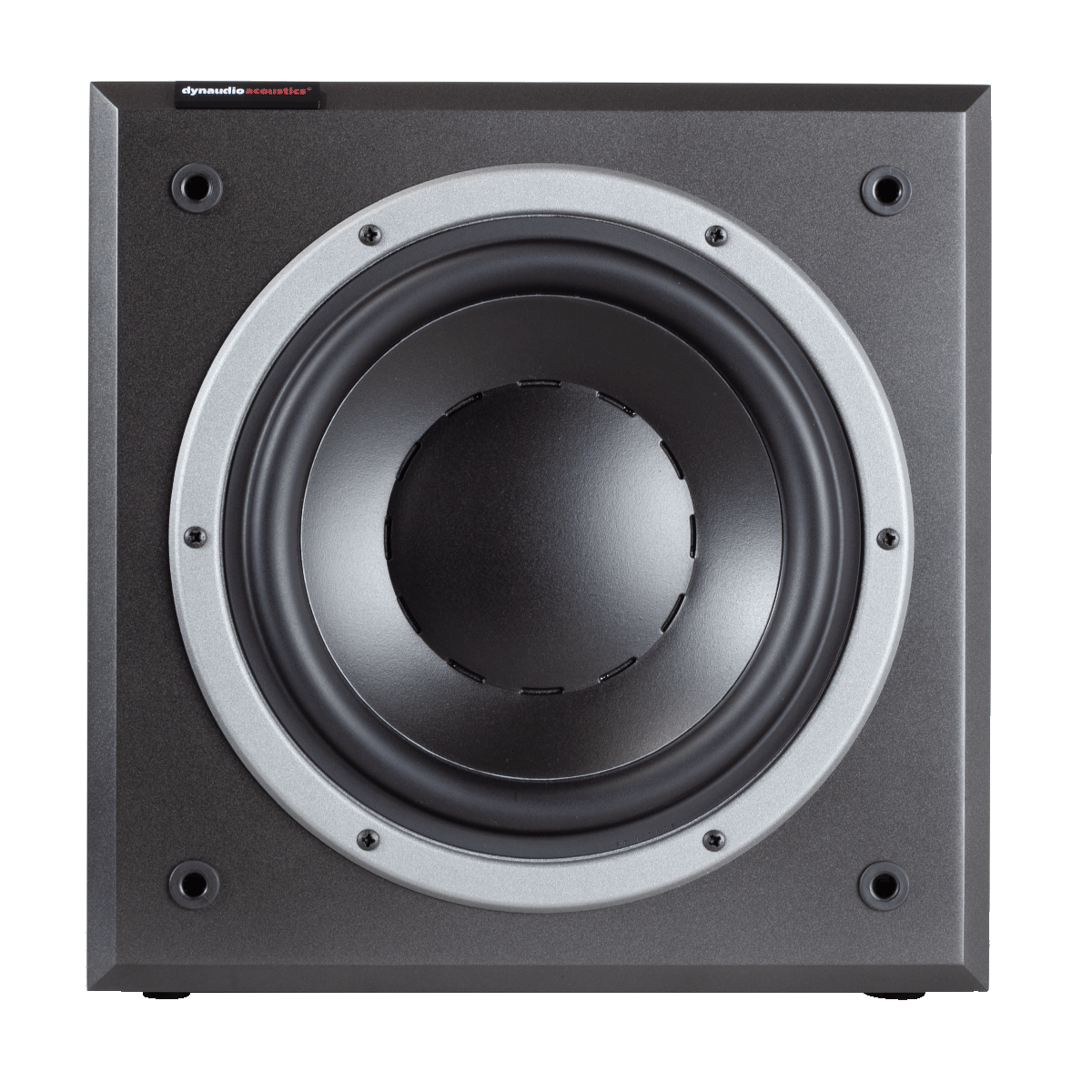

The BM9S is designed according to the strict BM series specifications. With a 10" woofer and 200 Watts of power, and virtually minute dimensions, this sub is tailor-made to take care of even the most comprehensive challenges where space is scarce.

BM9S

Choose finish

Introduction

BM9S

The BM9S is designed according to the strict BM series specifications. With a 10" woofer and 200 Watts of power, and virtually minute dimensions, this sub is tailor-made to take care of even the most comprehensive challenges where space is scarce.

Being every bit as versatile as the rest of the BM series, BM9S is a very competent partner for smaller stereo and multichannel setups, giving a very powerful system for even the most demanding users across the globe.

The Auto On/Off function, provides a minimized idle energy usage by shutting off after minutes of no input signal. The auto sensing circuit enables BM9S to automatically come to life when input signal is detected.

The satellite filters that this sub sports, provides high-pass filtering of the monitor source signal allowing 60Hz or 80Hz corner frequencies.

This is a huge advantage for the monitor performance, as the satellites do not need to deal with power consuming lower frequencies. This leaves all the satellite power to greatly accelerate performance and precision.

Review

Technical specifications

Specification sheet for BM Series part 2
System: Active Subwoofer
Frequency Response (+/- 3 dB): 29 Hz - 250 Hz
Low Frequency Limit: 29 Hz
High Frequency Limit: 50 Hz - 250 Hz
Amplifier Power: 200 W @ 4 Ohm
Crossover Frequencies HP Sat: Flat / 60 Hz / 80 Hz
Low Pass Filter: 50 – 150 Hz
Crossover Slope: 2nd order Butterworth
Crossover Bypass: Yes (Flat)
Phase adjustment: 0° / 180°

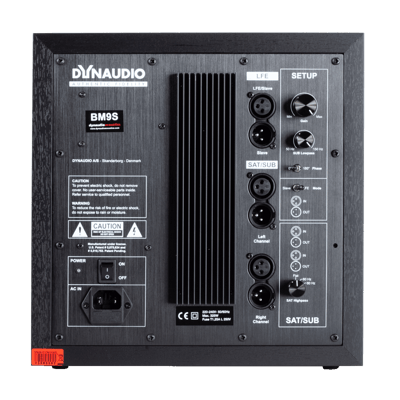

Inputs: Balanced/XLR
Input Sensitivity for Full Output: 75mV - 5V
Maximum Input: 10Vrms
Specification sheet for BM Series part 1
Input Impedance: 20 k (+ branch) 10k (- branch)
Output: Balanced/XLR
Master / Slave Link: Yes
Drive Unit: 10" (24 cm), long throw
Magnetic Shielding: Yes
Internal Cabinet Volume: 15,9 litres
Bass Principle: Closed
Power Consumption Max.: 325 W
Power Consumption Standby: 16 W
Mains Voltage: 100-120V 50/60Hz or 220-240V 50/60Hz
Weight (net): 10 kg / 22 lbs
Dimensions (W x H x D): 294 x 289 x 318 mm / 11.6" x 11.4" x 12.5"
