BM9S II

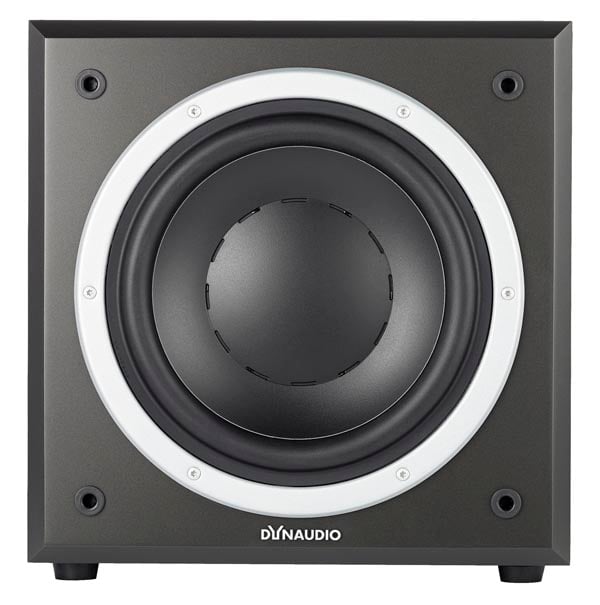

BM9S II compact subwoofer

The BM9S II is designed to complement BM Compact mkIII and BM5 mkIII monitors.

BM9S mkII

Choose finish

Introduction

BM9S II

The BM9S II is designed to complement BM Compact mkIII and BM5 mkIII monitors.

The BM9S II is specifically designed to complement BM Compact mkIII and BM5 mkIII monitors, adding extended bass in smaller mixing and recording environments.

Features

  • 10" Subwoofer

  • Handcrafted driver

  • Selectable LFE or slave mode

  • Made in Denmark

For me, chopping between speakers – I just get more confused – so I’d rather just have one pair of speakers that I trust.

Daniel Miller

Review

Technical specifications

Specification sheet for BM Series part 2
System: Precision Subwoofer
Frequency Response: 29Hz - 250Hz
Inputs: LFE/Slave, SAT/SUB, XLR right/left full bandwidth
XLR Input impedance: + branch 20kOhm, – branch 10kOhm
Sensitivity: 75mVRMS - 5VRMS, adjustable
Max. Input voltage: 10VRMS
Outputs: Slave, SAT/SUB, XLR right/left, High-pass filtered
XLR Output impedance: 100 Ohm (each branch)
XLR Pin-out: 1: 0 / 2: + / 3: –
Specification sheet for BM Series part 1
Mode selector: LFE, Slave (Phase and volume controls are bypassed in slave mode
SAT High-pass: Flat, 60Hz, 80Hz
SUB Low-pass: 50Hz to 150Hz
Auto ON/OFF: Automatic ON (LED green) when signal is detected at input Automatic mute (LED red) when no signal is detected for 15 to 20 min.
Amplifier power: 200W, 4 Ohm
Power consumption: <16W Standby, 325W Max.
Woofer: 240mm/10” One piece molded MSP cone (Magnesium Silicate Polymer), 100 mm/4”, Pure aluminum voice coil
Weight: 8,8kg. / 19.4lbs
Dimensions (W x H x L): 290 x 290 x 300mm / 11.4” x 11.4” x 11.8”
