 The latest addition to the LYD series: the 3-way LYD 48

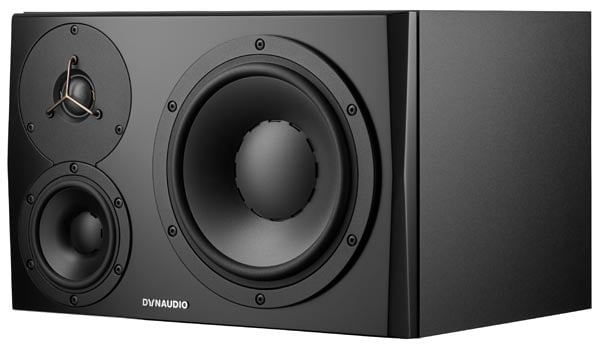

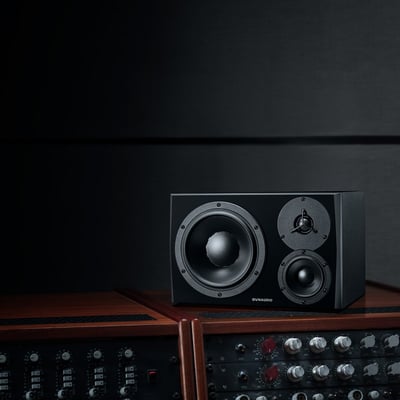

Left front of LYD 48 in black

Choose finish

Introduction

LYD 48

The 3-way LYD monitor. With its newest addition to the LYD personal reference monitor series, Dynaudio is bringing a new perspective to power and precision for producers and musicians everywhere – with unmatched accuracy at any volume level.

This 3-way near- to midfield monitor reaches eyebrow-raising levels of accuracy thanks to a new soft-dome tweeter and Dynaudio’s proprietary MSP midrange driver and woofer. Each driver is fuelled by a powerful, state-of-the-art Class-D amplifier and a full 24-bit/96kHz signal path. And, like the rest of the LYD range, it lets you fine-tune low frequency response, position and sound-balance using cutting-edge DSP.

Soundcards and great monitors revolutionized my productions.

Axel Boman

Technical specifications

Measured by the best acousticians in the business.

Specification sheet for LYD part 2
Max SPL (1m, pair): 112dB
Principle: Bass reflex
Crossover Frequencies: 460Hz / 5.5kHz
Tweeter: 1inch Soft dome
Midrange: 4inches
Woofer: 8inches
Dimensions (W x H x D): 369 x 234 x 328mm
Weight: 12kg
Sensitivity (85dB @ 1m, free field):
+6dB: 50mV
0dB: 100 mV
-6dB: 200 mV
Specification sheet for LYD part 1
Amplifier:
Power (Tweeter/Midrange/Woofer): 50W/50W/80W
Type: Class D
Power consumption standby: <0.5W
Power consumption max.: 100W
Input voltage: 90 - 264V AC, 50 - 60Hz
Inputs: XLR balanced/RCA unbalanced
Outputs: N/A
Frequency response -6dB limits:
Bass extension +10Hz: 60Hz - 21kHz
Bass extension 0Hz: 50Hz - 21kHz
Bass extension -10Hz: 40Hz - 21kHz
Free field frequency response: 50Hz - 19kHz
