CloseCompact nearfield personal monitors for incredible precision in smaller spaces – and even at low volumes
Choose finish
Get the unvarnished truth and deliver your mixes exactly as the artist intended

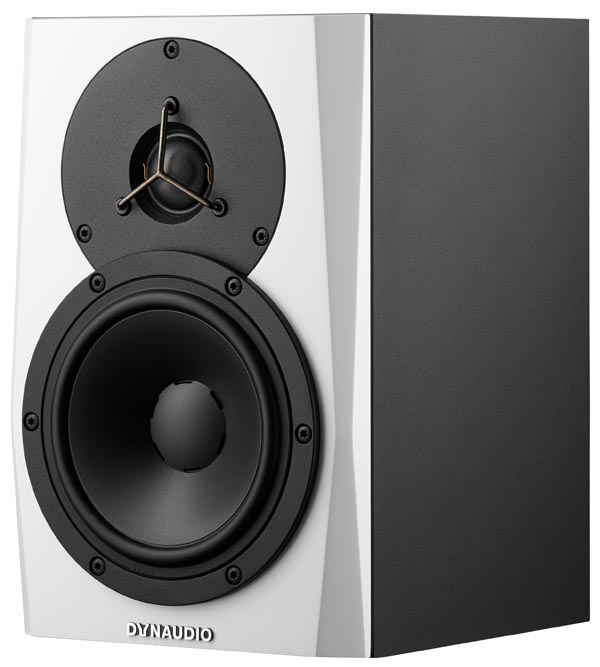

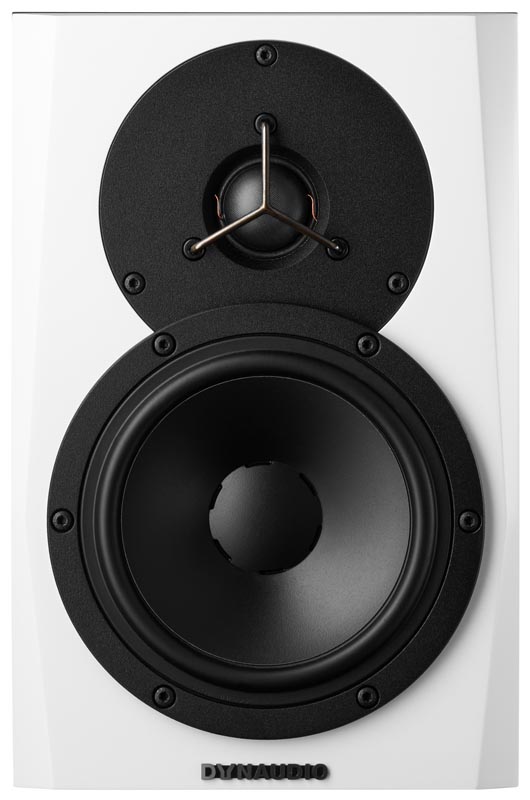

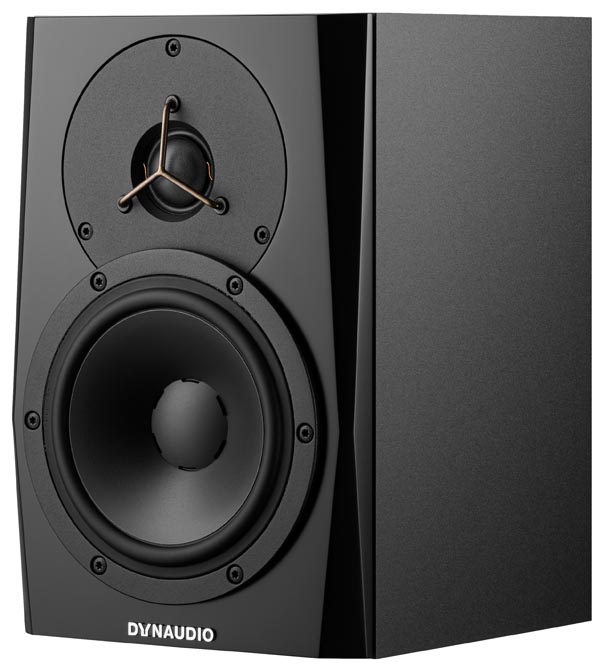

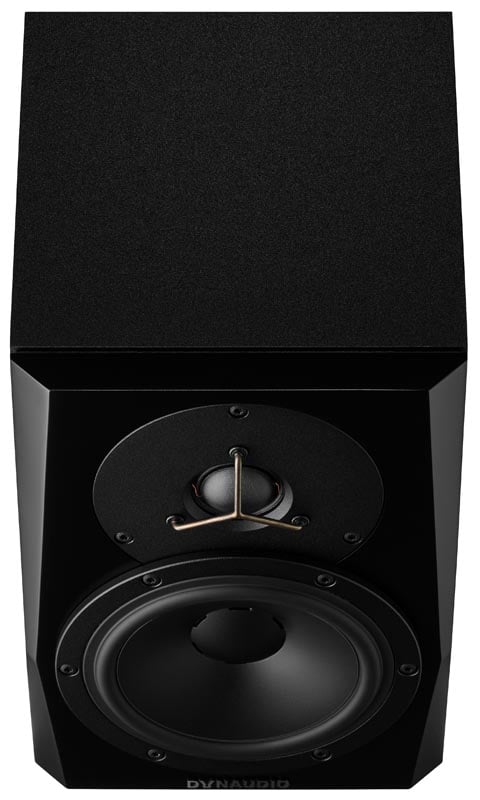

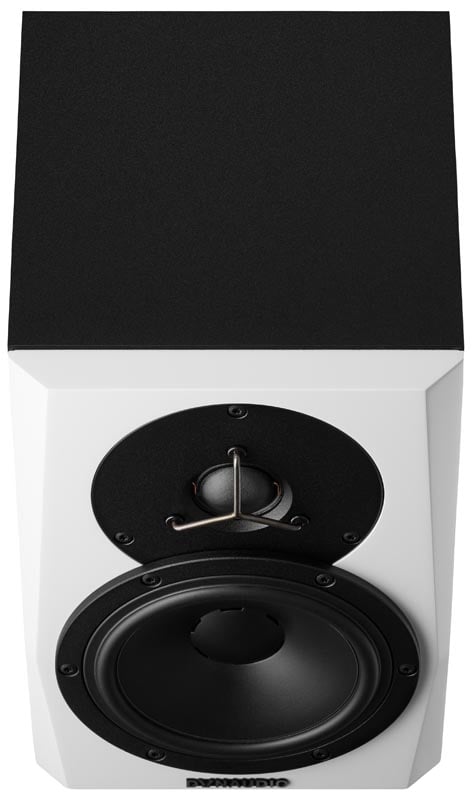

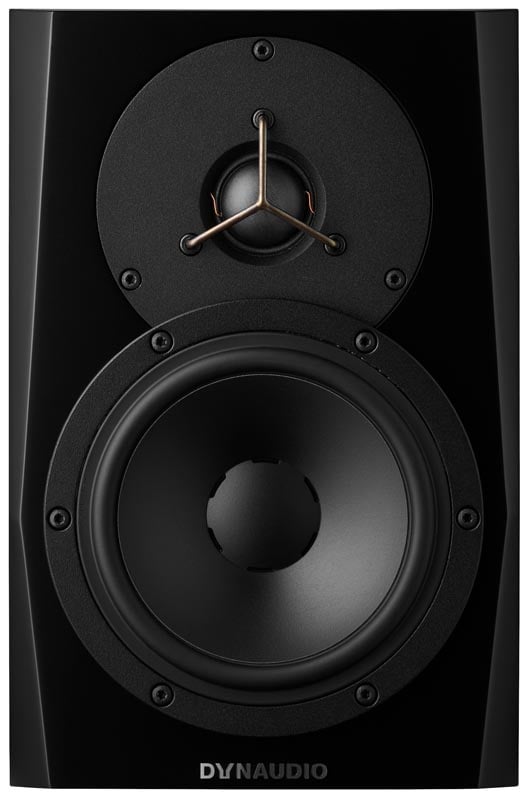

LYD 5, with its low-volume precision, is the ideal complement for any small studio set-up. It uses the same lightweight aluminium voice-coils in its handmade 5in MSP drive-units as our high-end hi-fi speakers, and pairs them with cutting-edge Class-D amplification as well as a 24-bit/96kHz signal path with advanced DSP.
Nearfield Monitor with 5" Woofer
Bi-amped speaker design with 2 x 50W and state-of-the-art Class-D amplification
Bass extension to extend or curtail the low end frequency response
Two different tunings: one for free standing and one designed for speakers within 50 cm of wall
Sound balance to influence the overall response of the speaker
Made in Denmark
We believe monitors should sound great at all volume levels - low and high
| Max SPL (1m, pair): | 106dB |
|---|---|
| Principle: | Bass reflex |
| Crossover Frequency: | 5.2kHz |
| Tweeter: | 1in soft dome |
| Mid: | N/A |
| Woofer: | 5in |
| Dimensions (W x H x D): | 170 x 260 x 211mm |
| Weight: | 5.7kg |
| Sensitivity (85dB @ 1m, free field): | |
| +6dB: | 50mV |
| 0dB: | 100mV |
| -6dB: | 200mV |
| Amplifier: | |
|---|---|
| Power (Tweeter/Woofer): | HF 50W/LF 50W |
| Type: | Class D |
| Power consumption standby: | <0.5W |
| Power consumption max.: | 100W |
| Input voltage: | 90 - 264V AC, 50 - 60Hz |
| Inputs: | XLR balanced/RCA unbalanced |
| Outputs: | N/A |
| Cut-off frequencies -6dB limits: | |
| Bass extension +10Hz: | 70Hz - 21kHz |
| Bass extension 0Hz: | 60Hz - 21kHz |
| Bass extension -10Hz: | 50Hz - 21kHz |
| Free field frequency response: | 62Hz - 19kHz |
