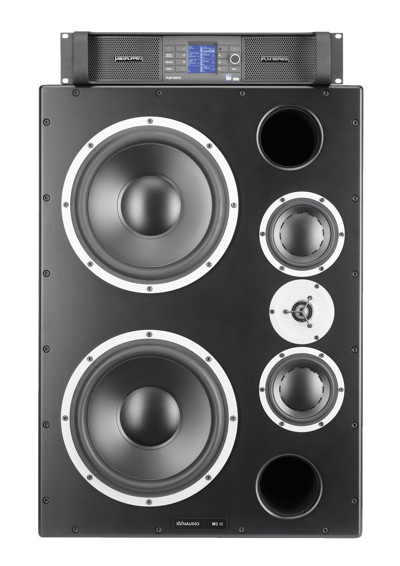

Front of M3XE

Choose finish

Introduction

M3XE

For Mastering, Tracking and Mixing. Quad – amped.

The Dynaudio Professional M3XE monitor system that takes monitoring to a whole new level with a significant upgrade from its predecessor - the renowned M3A 3-way monitor. Each speaker is powered by a four channel PLM 12k44 amplifier from Lab.gruppen.

With the newest and most pristine Dynaudio ESOTAR² driver technology, M3XE takes over where most other monitor systems give up. With unsurpassed attention to detail, underpinned by an impressive 22Hz - 21kHz frequency response and beyond 135dB SPL, M3XE leaves no room for desire in terms of resolution, range or sheer power.

Different from its sister monitor M3VE, a set of M3XE's is powered by not one, but two 12k44 Lab.gruppen amplifiers, using the integrated Lake active cross-over processing as well as powering the HF, MF and dual LF woofers by the four independent amplifier channels of the 12k44.

Please visit http://labgruppen.com/series/plm-series for more info.

In short, M3XE surpasses any and all main monitor expectations!

Features

  • Three-Way Main Monitor

  • Handcrafted drivers

  • For in-wall or free standing setups

  • Matched with Lab.gruppen PLM 12k44 amplifier

  • Made in Denmark

Technical specifications

Specification sheet for M Series part 2
System: 3-way Active Main Monitor
Frequency Response (±3dB): 22Hz - 21kHz
Peak SPL 1m, pair (IEC Short Term): > 135dB peak
Resonance Frequency: 24Hz
Internal Cabinet Volume: 145 liters
Bass Principle: Bass reflex
Amplifier: 1 Lab-gruppen PLM10000Q (pr. speaker). Preset: M3XE V06
Tweeter: Esotar² 28mm soft dome Magnetic fluid, Metal rear chamber, Pure alu wire voice coil, 4 mm die-cast alu front, Neodym magnet material
Midranges: 15cm with 75mm diameter pure alu wire voice coil, MSP-cone, long stroke
Woofers: Esotar 30cm with 75 mm diameter pure cupper wire voice-coil, MSP-cone, long stroke
Weight: 65kg
Dimensions (W x H x L): 555 x 775 x 505mm
Cabinet: 25mm MDF. Strategically braced and damped. Low turbulence reflex-ports. Separate chambers for each woofer.
Crossover: All 4 channels: Active dsp-based in-amp Lake processor. Each channel has impedance-correction providing the best working conditions for the ampflifier.
Specification sheet for M Series part 1
Model: 12k44
Number of amplifier channels: 4
Max out Power per Channel (4 ohms, all channels driven): 3000W
THD + N at 1 kHz and 1 dB below clipping: < 0.04 %
Dynamic Range: > 114dB
Channel separation (Crosstalk) at 1 kHz: > 70dB
Inputs: Analog, AES/EBU & Dante
Analog Input Sample Rate / Resolution: 96kHz / 24bit
Weight: 16.5kg (36lbs)
Dimensions (WxHxD): 483 (19") x 88 (2 U) x 424mm (16")
